•  The headlight cleaner actuator presses out the headlight cleaner nozzle of the front bumper using the washer fluid pressure.

•  The headlight cleaner actuator is located on the front bumper.

•  The headlight cleaner actuator retracts the headlight cleaner nozzle in the front bumper using the spring.

•  When the washer fluid pressure increases by the headlight cleaner motor operation, the headlight cleaner nozzle is pressed out to inject washer fluid.

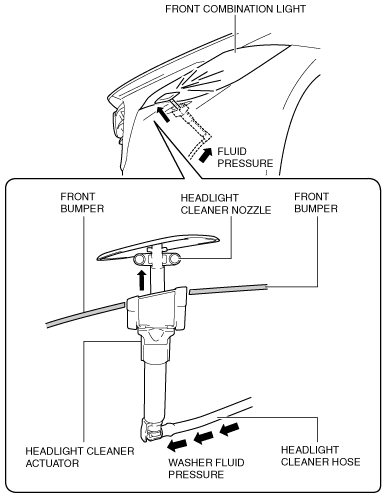

ac9wzn00001373

•  Not applicable
