USB POWER OUTLET


id092100112000


Purpose

•  By connecting a USB device to the USB power outlet, power is supplied to enable in-vehicle battery charging.

Function

•  The USB power outlet supplies power to USB devices rated at 10.5 W (DC5 V, 2.1 A) or less maximum power consumption.

Structure/Construction/Operation

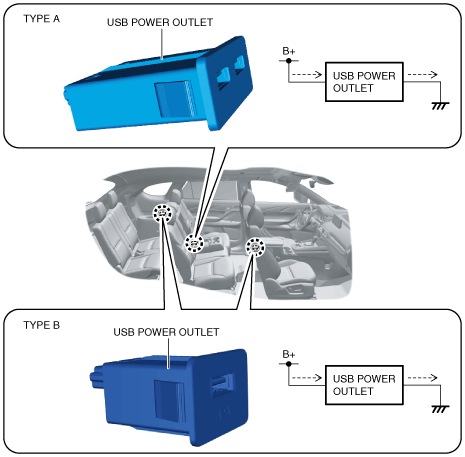

•  The USB power outlet is located on the armrest of the second-row seat.
•  When the USB device is connected to the USB power outlet, power is supplied to the USB device by a constant power supply from the battery.
ac9uun00003466

Fail-safe

•  Not applicable
