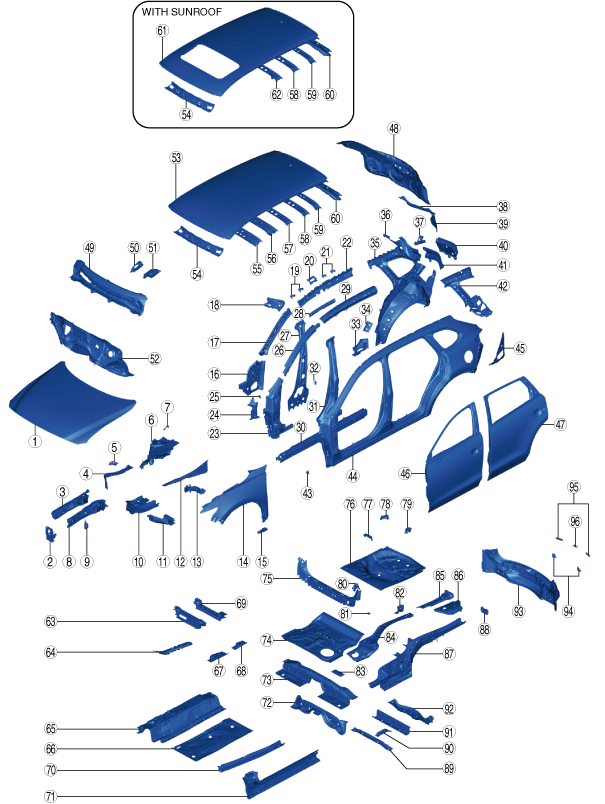

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]
id098007739700
ac9uub00000261
|
|
No. |
Part name |
Ultra high-tension steel |
High-tension steel |
Rust proof steel |
Thickness (mm {in}) |
||
|---|---|---|---|---|---|---|---|
|
1
|
Bonnet (outer) (*)
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
2
|
Bumper bracket component
|
Bumper bracket
|
×
|
-
|
×
|
2.60 {0.102}
|
|
|
Suspension mounting reinforcement
|
-
|
×
|
×
|
2.90 {0.114}
|
|||
|
Outer frame reinforcement
|
-
|
×
|
×
|
2.00 {0.0787}
|
|||
|
3
|
Front side frame (inner)
|
Front
|
-
|
×
|
×
|
1.40 {0.0551}
|
|
|
Rear
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
4
|
Shroud side member component
|
Apron reinforcement (lower)
|
-
|
×
|
×
|
0.80 {0.031}
|
|
|
Shroud side panel
|
-
|
×
|
×
|
0.90 {0.035}
|
|||
|
Side stay
|
-
|
-
|
×
|
1.20 {0.0472}
|
|||
|
Apron reinforcement (rear)
|
-
|
-
|
×
|
1.00 {0.0394}
|
|||
|
5
|
Shroud upper reinforcement
|
-
|
-
|
×
|
0.90 {0.035}
|
||
|
6
|
Wheel apron panel component
|
Apron panel (front)
|
-
|
-
|
×
|
1.20 {0.0472}
|
|
|
Apron reinforcement No.3
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
Apron reinforcement (upper)
|
-
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Suspension housing (upper)
|
-
|
×
|
×
|
2.90 {0.114}
|
|||
|
Suspension housing (lower)
|
-
|
×
|
×
|
1.20 {0.0472}
|
|||
|
Cowl side reinforcement
|
-
|
×
|
×
|
1.00 {0.0394}
|
|||
|
Wheel apron (rear) reinforcement
|
-
|
×
|
×
|
1.40 {0.0551}
|
|||
|
Apron reinforcement No.2
|
-
|
-
|
×
|
1.60 {0.0630}
|
|||
|
Apron gusset reinforcement
|
-
|
-
|
×
|
1.20 {0.0472}
|
|||
|
7
|
Front fender junction
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
8
|
Front side frame (outer) component
|
Front
|
-
|
×
|
×
|
1.40 {0.0551}
|
|
|
Rear
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
Front frame reinforcement (outer)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
9
|
Light bracket
|
-
|
-
|
×
|
1.60 {0.0630}
|
||
|
10
|
Front frame (rear) component
|
Front frame (rear)
|
×
|
-
|
×
|
2.60 {0.102}
|
|
|
Side member
|
-
|
-
|
×
|
1.80 {0.0709}
|
|||
|
Lower arm bracket
|
-
|
-
|
×
|
1.80 {0.0709}
|
|||
|
Frame gusset
|
-
|
-
|
-
|
1.80 {0.0709}
|
|||
|
11
|
Torque box
|
-
|
×
|
×
|
1.40 {0.0551}
|
||
|
12
|
Cowl side (front) reinforcement
|
Cowl side reinforcement (front)
|
-
|
×
|
×
|
1.40 {0.0551}
|
|
|
Light bracket
|
-
|
×
|
×
|
0.80 {0.031}
|
|||
|
13
|
Front fender stay
|
-
|
-
|
×
|
1.40 {0.0551}
|
||
|
14
|
Front fender panel (*)
|
-
|
-
|
-
|
1.10 {0.0433}
|
||
|
15
|
Front fender lower
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
16
|
Hinge pillar (inner)
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
17
|
Front pillar (inner)
|
×
|
-
|
-
|
1.80 {0.0709}
|
||
|
18
|
Front pillar reinforcement (upper)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
19
|
Nut plate (front)
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
20
|
Roof corner gusset
|
×
|
-
|
-
|
1.20 {0.0472}
|
||
|
21
|
Nut plate (rear)
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
22
|
Roof rail (inner)
|
×
|
-
|
-
|
1.60 {0.0630}
|
||
|
23
|
Hinge reinforcement component
|
Hinge reinforcement
|
×
|
-
|
-
|
1.60 {0.0630}
|
|
|
Front pillar (inner) reinforcement
|
×
|
-
|
-
|
1.60 {0.0630}
|
|||
|
Pillar hinge reinforcement
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
Hinge gusset (lower)
|
×
|
-
|
-
|
2.30 {0.0906}
|
|||
|
Hinge gusset
|
×
|
-
|
-
|
1.40 {0.0551}
|
|||
|
24
|
Cowl side reinforcement (rear) component
|
Cowl side reinforcement (rear)
|
-
|
×
|
×
|
2.00 {0.0787}
|
|
|
Fender bracket (front)
|
-
|
×
|
×
|
2.00 {0.0787}
|
|||
|
25
|
Reinforcement checker
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
26
|
Front pillar reinforcement component
|
Front pillar reinforcement (inner)
|
×
|
-
|
-
|
1.80 {0.0709}
|
|
|
Front pillar reinforcement (outer)
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
27
|
Center pillar (inner) component
|
Center pillar (inner) reinforcement
|
-
|
×
|
-
|
1.20 {0.0472}
|
|
|
Upper
|
×
|
-
|
-
|
1.80 {0.0709}
|
|||
|
Lower
|
-
|
×
|
×
|
1.40 {0.0551}
|
|||
|
28
|
Roof rail (outer)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
29
|
Roof rail reinforcement
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
30
|
Side sill reinforcement component
|
Side sill reinforcement
|
×
|
-
|
×
|
1.40 {0.0551}
|
|
|
Side sill reinforcement (front)
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
31
|
Center pillar reinforcement component
|
Inner
|
×
|
-
|
-
|
2.30 {0.0906}
|
|
|
Outer
|
Upper
|
×
|
-
|
-
|
2.00 {0.0787}
|
||
|
Lower
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
Anchor nut plate
|
×
|
-
|
-
|
2.30 {0.0906}
|
|||
|
32
|
Nut plate (door lock striker)
|
-
|
-
|
-
|
2.30 {0.0906}
|
||
|
33
|
Side sill reinforcement component
|
Side sill reinforcement
|
×
|
-
|
-
|
1.80 {0.0709}
|
|
|
Tower anchor reinforcement
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
34
|
Quarter panel reinforcement
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
35
|
Rear pillar (inner) component
|
Roof rail (inner)
|
-
|
-
|
×
|
0.70 {0.028}
|
|
|
Rear pillar (inner) No.1
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
Rear pillar (inner) No.2
|
-
|
-
|
×
|
0.65 {0.026}
|
|||
|
Corner plate
|
-
|
-
|
-
|
1.80 {0.0709}
|
|||
|
Wheel housing (inner)
|
-
|
-
|
×
|
0.80 {0.031}
|
|||
|
Suspension housing gusset
|
-
|
-
|
-
|
2.30 {0.0906}
|
|||
|
Package gusset
|
-
|
-
|
-
|
1.80 {0.0709}
|
|||
|
Side brace
|
-
|
-
|
-
|
1.00 {0.0394}
|
|||
|
Suspension housing upper
|
-
|
×
|
×
|
2.30 {0.0906}
|
|||
|
D pillar reinforcement
|
-
|
-
|
-
|
1.20 {0.0472}
|
|||
|
End plate
|
-
|
×
|
×
|
0.65 {0.026}
|
|||
|
Anchorage reinforcement
|
-
|
-
|
-
|
1.80 {0.0709}
|
|||
|
36
|
Corner junction
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
37
|
Anchorage bracket
|
-
|
×
|
-
|
1.80 {0.0709}
|
||
|
38
|
Rear pillar (outer)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
39
|
Corner plate
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
40
|
Rear side panel
|
-
|
-
|
-
|
0.65 {0.026}
|
||
|
41
|
D pillar reinforcement
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
42
|
Suspension housing reinforcement component
|
Suspension housing reinforcement
|
-
|
×
|
-
|
0.80 {0.031}
|
|
|
C pillar reinforcement
|
×
|
-
|
-
|
1.20 {0.0472}
|
|||
|
Suspension housing gusset
|
-
|
-
|
-
|
2.00 {0.0787}
|
|||
|
Rear fender reinforcement
|
-
|
-
|
-
|
0.70 {0.028}
|
|||
|
43
|
Front fender set bracket
|
-
|
×
|
-
|
1.00 {0.0394}
|
||
|
44
|
Front pillar (outer)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
45
|
Rear fender panel (lower)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
46
|
Front door panel (outer)
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
47
|
Rear door panel (outer)
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
48
|
Liftgate panel (outer)
|
Upper
|
-
|
-
|
×
|
0.70 {0.028}
|
|
|
Lower
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
49
|
Dash and cowl component
|
Dash panel (upper)
|
-
|
-
|
×
|
1.00 {0.0394}
|
|
|
Cowl gusset
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
A/C bracket
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
50
|
Wiper bracket
|
-
|
×
|
×
|
1.40 {0.0551}
|
||
|
51
|
Cowl upper plate
|
-
|
×
|
×
|
1.80 {0.0709}
|
||
|
52
|
Dash panel (lower) component
|
Dash panel (lower)
|
-
|
-
|
×
|
1.40 {0.0551}
|
|
|
Front frame (rear) reinforcement
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Dash lower panel (center)
|
×
|
-
|
×
|
1.80 {0.0709}
|
|||
|
Dash side reinforcement
|
×
|
-
|
-
|
1.00 {0.0394}
|
|||
|
Tunnel junction
|
-
|
-
|
×
|
0.90 {0.035}
|
|||
|
53
|
Roof panel component (without sunroof)
|
-
|
-
|
-
|
0.75 {0.030}
|
||
|
54
|
Front header
|
-
|
×
|
-
|
0.65 {0.026}
|
||
|
55
|
Roof reinforcement No.1 (without sunroof)
|
-
|
-
|
-
|
0.55 {0.022}
|
||
|
56
|
Roof reinforcement No.2 (without sunroof)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
57
|
Roof reinforcement No.3 (without sunroof)
|
-
|
-
|
-
|
0.55 {0.022}
|
||
|
58
|
Roof reinforcement No.4
|
-
|
-
|
-
|
0.55 {0.022}
|
||
|
59
|
Roof reinforcement No.5
|
-
|
-
|
-
|
0.55 {0.022}
|
||
|
60
|
Rear header component
|
Rear header
|
-
|
-
|
×
|
0.70 {0.028}
|
|
|
Rear header (upper)
|
-
|
×
|
-
|
0.65 {0.026}
|
|||
|
Hinge reinforcement
|
-
|
-
|
-
|
1.60 {0.0630}
|
|||
|
61
|
Roof panel component (with sunroof)
|
Roof panel
|
-
|
-
|
-
|
0.75 {0.030}
|
|
|
Fixing plate
|
-
|
-
|
-
|
1.40 {0.0551}
|
|||
|
Fixing reinforcement No.1
|
-
|
-
|
-
|
1.40 {0.0551}
|
|||
|
Fixing reinforcement No.2
|
×
|
-
|
-
|
2.30 {0.0906}
|
|||
|
Roof reinforcement
|
×
|
-
|
-
|
2.30 {0.0906}
|
|||
|
62
|
Roof reinforcement No.2 component (with sunroof)
|
Roof reinforcement No.2
|
-
|
-
|
-
|
0.55 {0.022}
|
|
|
Sunroof set bracket
|
-
|
-
|
-
|
1.00 {0.0394}
|
|||
|
63
|
Crossmember No.2
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
64
|
Floor reinforcement No.1
|
Front
|
×
|
-
|
-
|
1.60 {0.0630}
|
|
|
Rear
|
-
|
×
|
-
|
1.00 {0.0394}
|
|||
|
65
|
Tunnel reinforcement component
|
Tunnel reinforcement
|
×
|
-
|
×
|
1.20 {0.0472}
|
|
|
Dashboard bracket
|
-
|
×
|
-
|
0.90 {0.035}
|
|||
|
66
|
Front floor side panel
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
67
|
Floor reinforcement No.2
|
LH
|
×
|
-
|
-
|
1.60 {0.0630}
|
|
|
RH
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
68
|
Floor reinforcement No.3
|
×
|
-
|
-
|
1.60 {0.0630}
|
||
|
69
|
Seat bracket component
|
Crossmember No.2.5
|
×
|
-
|
-
|
1.20 {0.0472}
|
|
|
Seat bracket (lower)
|
-
|
×
|
-
|
1.80 {0.0709}
|
|||
|
Seat bracket (upper)
|
×
|
-
|
-
|
1.60 {0.0630}
|
|||
|
70
|
Front B frame
|
Front
|
×
|
-
|
×
|
1.80 {0.0709}
|
|
|
Rear
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
71
|
Side sill (inner) component
|
Side sill (inner)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|
|
Side sill reinforcement (front)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
72
|
Crossmember No.3 (lower)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
73
|
Crossmember No.3 component
|
Crossmember No.3
|
×
|
-
|
×
|
2.00 {0.0787}
|
|
|
Crossmember No.3 reinforcement (front)
|
×
|
-
|
-
|
2.00 {0.0787}
|
|||
|
Crossmember No.3 reinforcement (center)
|
-
|
×
|
×
|
1.00 {0.0394}
|
|||
|
Crossmember junction No.1 (rear)
|
-
|
×
|
×
|
1.00 {0.0394}
|
|||
|
Crossmember No.3 gusset
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
74
|
Center floor panel
|
-
|
-
|
×
|
0.90 {0.035}
|
||
|
75
|
Rear floor front reinforcement component
|
Brace bracket
|
-
|
-
|
-
|
2.30 {0.0906}
|
|
|
Rear floor front reinforcement
|
-
|
×
|
-
|
0.90 {0.035}
|
|||
|
Seat hinge reinforcement
|
-
|
×
|
-
|
1.60 {0.0630}
|
|||
|
Rear floor reinforcement (inner)
|
-
|
-
|
-
|
1.20 {0.0472}
|
|||
|
Rear floor reinforcement (outer)
|
-
|
-
|
-
|
2.30 {0.0906}
|
|||
|
76
|
Trunk floor panel component
|
Trunk floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
|
|
Trunk floor reinforcement
|
-
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Spare wheel bracket
|
-
|
-
|
-
|
1.00 {0.0394}
|
|||
|
77
|
Tire stopper bracket C
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
78
|
Tire stopper bracket A
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
79
|
Tire stopper bracket B
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
80
|
Jack bracket
|
-
|
-
|
-
|
1.20 {0.0472}
|
||
|
81
|
HU unit bracket (lower)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
82
|
Brace reinforcement
|
-
|
-
|
-
|
2.30 {0.0906}
|
||
|
83
|
Seat bracket
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
84
|
Rear side frame component (inner)
|
Rear frame reinforcement
|
×
|
-
|
×
|
0.90 {0.035}
|
|
|
Center floor (upper)
|
×
|
-
|
-
|
1.60 {0.0630}
|
|||
|
Anchorage reinforcement
|
-
|
-
|
-
|
1.20 {0.0472}
|
|||
|
85
|
Floor side panel No.1 component
|
Floor side panel No.1 (front)
|
×
|
-
|
-
|
1.60 {0.0630}
|
|
|
Rear floor cover
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
Floor side panel No.1 (rear)
|
-
|
×
|
-
|
2.00 {0.0787}
|
|||
|
86
|
Floor side panel No.2
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
87
|
Rear side frame component (outer)
|
Rear side sill (inner)
|
×
|
-
|
×
|
1.80 {0.0709}
|
|
|
Rear side frame (front)
|
×
|
-
|
×
|
1.80 {0.0709}
|
|||
|
Rear side frame (center)
|
×
|
-
|
×
|
1.80 {0.0709}
|
|||
|
Torque box C (rear)
|
-
|
-
|
×
|
2.00 {0.0787}
|
|||
|
Rear frame (front)
|
-
|
×
|
×
|
2.90 {0.114}
|
|||
|
Torque box C (front)
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
Rear frame gusset
|
-
|
×
|
×
|
1.40 {0.0551}
|
|||
|
Tiedown reinforcement
|
×
|
-
|
×
|
3.20 {0.126}
|
|||
|
Rear side frame (rear)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
C frame reinforcement
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
88
|
Rear bumper bracket (front)
|
×
|
-
|
×
|
2.00 {0.0787}
|
||
|
89
|
Rear cross reinforcement
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
90
|
Gusset No.4
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
91
|
Crossmember No.4 (front)
|
-
|
×
|
×
|
1.00 {0.0394}
|
||
|
92
|
Crossmember No.4 (rear)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
93
|
Rear end panel component
|
Rear end panel
|
-
|
-
|
×
|
1.00 {0.0394}
|
|
|
Rear end member
|
-
|
-
|
-
|
0.70 {0.028}
|
|||
|
Corner junction
|
-
|
-
|
-
|
0.90 {0.035}
|
|||
|
Trunk board bracket
|
-
|
-
|
-
|
1.00 {0.0394}
|
|||
|
Rear end member (side)
|
-
|
-
|
-
|
1.00 {0.0394}
|
|||
|
94
|
Rear bumper bracket (rear)
|
-
|
-
|
×
|
0.70 {0.028}
|
||
|
95
|
Rear bumper reinforcement (lower)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
96
|
Rear bumper reinforcement (center)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
