ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

id098007745600


Characteristics of Ultra High-Tensile Steel Plates

•  Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
•  Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
•  Enhanced shock absorption has improved the safety.

Range of Use and Cautions for Service

•  Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.
•  When drilling welded parts, use a well-ground drill bit.
•  After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

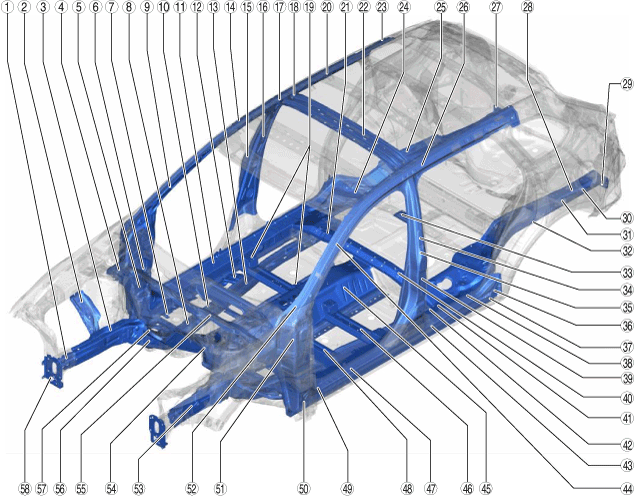

Without sunroof

ac9uub00000262

No.

Part name

Strength (MPa {kgf/cm2, psi})

1
Front frame reinforcement (outer)
590 {6016, 85572}
2
Apron reinforcement No.3
590 {6016, 85572}
3
Front side frame (inner) (rear)
590 {6016, 85572}
4
Hinge pillar (inner)
980 {9993, 142137}
5
Side sill reinforcement (front)
590 {6016, 85572}
6
Hinge gusset
590 {6016, 85572}
7
Floor reinforcement No.2
780 {7954, 113130}
8
Floor reinforcement No.1 (front)
780 {7954, 113130}
9
Front pillar (inner)
980 {9993, 142137}
10
Front B frame (front)
590 {6016, 85572}
11
Side sill (inner)
980 {9993, 142137}
12
Floor reinforcement No.3
780 {7954, 113130}
13
Front B frame (rear)
590 {6016, 85572}
14
Front pillar reinforcement (outer)
980 {9993, 142137}
15
Center pillar reinforcement (inner)
980 {9993, 142137}
16
Center pillar (inner) (upper)
590 {6016, 85572}
17
Roof rail (outer)
780 {7954, 113130}
18
Roof corner gusset
590 {6016, 85572}
19
Seat bracket (upper)
590 {6016, 85572}
20
Roof rail (inner)
980 {9993, 142137}
21
Crossmember No.3 reinforcement (front)
590 {6016, 85572}
22
Roof reinforcement No.2
590 {6016, 85572}
23
C pillar reinforcement
780 {7954, 113130}
24
Rear frame reinforcement
590 {6016, 85572}
25
Center floor (upper)
590 {6016, 85572}
26
Roof rail reinforcement
780 {7954, 113130}
27
Rear floor cover
780 {7954, 113130}
28
Floor side panel No.1 (front)
780 {7954, 113130}
29
Rear bumper bracket (front)
590 {6016, 85572}
30
Rear side frame (rear)
590 {6016, 85572}
31
C frame reinforcement
590 {6016, 85572}
32
Rear side frame (center)
590 {6016, 85572}
33
Seat bracket
590 {6016, 85572}
34
Center pillar reinforcement (outer) (upper)
980 {9993, 142137}
35
Anchor nut plate
980 {9993, 142137}
36
Side sill reinforcement
590 {6016, 85572}
37
Tower anchor reinforcement
590 {6016, 85572}
38
Rear side sill (inner)
590 {6016, 85572}
39
Center pillar reinforcement (outer) (lower)
590 {6016, 85572}
40
Crossmember No.3
590 {6016, 85572}
41
Rear side frame (front)
590 {6016, 85572}
42
Tiedown reinforcement
590 {6016, 85572}
43
Side sill reinforcement
980 {9993, 142137}
44
Front pillar reinforcement (inner)
780 {7954, 113130}
45
Tunnel reinforcement
590 {6016, 85572}
46
Crossmember No.2.5
780 {7954, 113130}
47
Side sill reinforcement (front)
590 {6016, 85572}
48
Crossmember No.2
590 {6016, 85572}
49
Pillar hinge reinforcement
590 {6016, 85572}
50
Hinge gusset (lower)
590 {6016, 85572}
51
Hinge reinforcement
590 {6016, 85572}
52
Front pillar (inner) reinforcement
590 {6016, 85572}
53
Front side frame (outer) (rear)
590 {6016, 85572}
54
Dash lower panel (center)
590 {6016, 85572}
55
Dash side reinforcement
590 {6016, 85572}
56
Front frame (rear)
590 {6016, 85572}
57
Front frame (rear) reinforcement
780 {7954, 113130}
58
Bumper bracket
590 {6016, 85572}

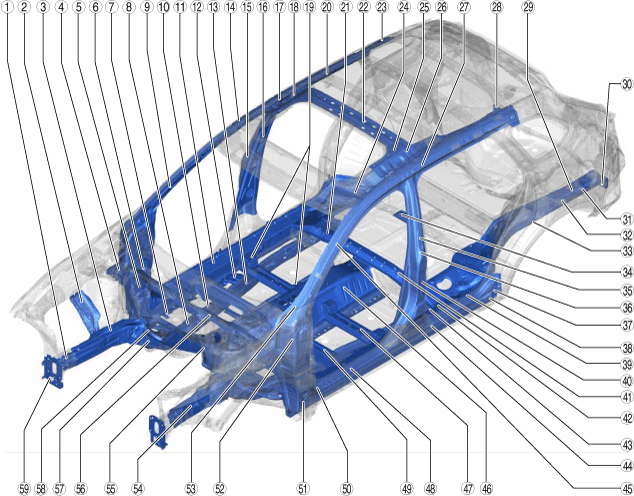

With sunroof

ac9uub00000263

No.

Part name

Strength (MPa {kgf/cm2, psi})

1
Front frame reinforcement (outer)
590 {6016, 85572}
2
Apron reinforcement No.3
590 {6016, 85572}
3
Front side frame (inner) (rear)
590 {6016, 85572}
4
Hinge pillar (inner)
980 {9993, 142137}
5
Side sill reinforcement (front)
590 {6016, 85572}
6
Hinge gusset
590 {6016, 85572}
7
Floor reinforcement No.2
780 {7954, 113130}
8
Floor reinforcement No.1 (front)
780 {7954, 113130}
9
Front pillar (inner)
980 {9993, 142137}
10
Front B frame (front)
590 {6016, 85572}
11
Side sill (inner)
980 {9993, 142137}
12
Floor reinforcement No.3
780 {7954, 113130}
13
Front B frame (rear)
590 {6016, 85572}
14
Front pillar reinforcement (outer)
980 {9993, 142137}
15
Center pillar reinforcement (inner)
980 {9993, 142137}
16
Center pillar (inner) (upper)
590 {6016, 85572}
17
Roof rail (outer)
780 {7954, 113130}
18
Roof corner gusset
590 {6016, 85572}
19
Seat bracket (upper)
590 {6016, 85572}
20
Roof rail (inner)
980 {9993, 142137}
21
Crossmember No.3 reinforcement (front)
590 {6016, 85572}
22
Roof reinforcement
590 {6016, 85572}
23
C pillar reinforcement
780 {7954, 113130}
24
Rear frame reinforcement
590 {6016, 85572}
25
Fixing reinforcement No.2
590 {6016, 85572}
26
Center floor (upper)
590 {6016, 85572}
27
Roof rail reinforcement
780 {7954, 113130}
28
Rear floor cover
780 {7954, 113130}
29
Floor side panel No.1 (front)
780 {7954, 113130}
30
Rear bumper bracket (front)
590 {6016, 85572}
31
Rear side frame (rear)
590 {6016, 85572}
32
C frame reinforcement
590 {6016, 85572}
33
Rear side frame (center)
590 {6016, 85572}
34
Seat bracket
590 {6016, 85572}
35
Center pillar reinforcement (outer) (upper)
980 {9993, 142137}
36
Anchor nut plate
980 {9993, 142137}
37
Side sill reinforcement
590 {6016, 85572}
38
Tower anchor reinforcement
590 {6016, 85572}
39
Rear side sill (inner)
590 {6016, 85572}
40
Center pillar reinforcement (outer) (lower)
590 {6016, 85572}
41
Crossmember No.3
590 {6016, 85572}
42
Rear side frame (front)
590 {6016, 85572}
43
Tiedown reinforcement
590 {6016, 85572}
44
Side sill reinforcement
980 {9993, 142137}
45
Front pillar reinforcement (inner)
780 {7954, 113130}
46
Tunnel reinforcement
590 {6016, 85572}
47
Crossmember No.2.5
780 {7954, 113130}
48
Side sill reinforcement (front)
590 {6016, 85572}
49
Crossmember No.2
590 {6016, 85572}
50
Pillar hinge reinforcement
590 {6016, 85572}
51
Hinge gusset (lower)
590 {6016, 85572}
52
Hinge reinforcement
590 {6016, 85572}
53
Front pillar (inner) reinforcement
590 {6016, 85572}
54
Front side frame (outer) (rear)
590 {6016, 85572}
55
Dash lower panel (center)
590 {6016, 85572}
56
Dash side reinforcement
590 {6016, 85572}
57
Front frame (rear)
590 {6016, 85572}
58
Front frame (rear) reinforcement
780 {7954, 113130}
59
Bumper bracket
590 {6016, 85572}
