FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Marks

ac3wzb00000091

Removal Procedure

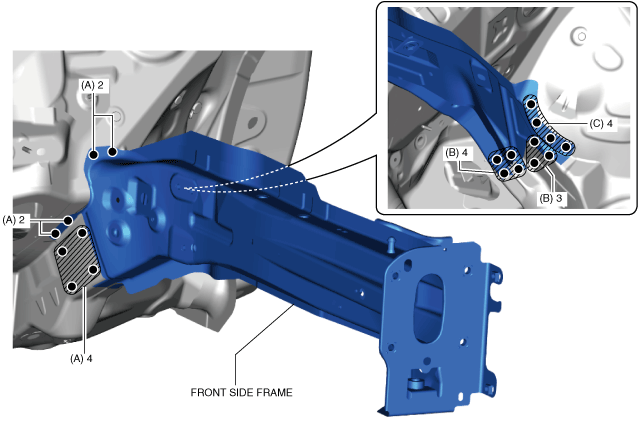

1.  Drill the 8 locations indicated by (A) shown in the figure.

2.  Drill the 7 locations indicated by (B) from front wheel housing shown in the figure.

3.  Drill the 4 locations indicated by (C) from front wheel housing shown in the figure.

Note

•  When drilling the 4 locations indicated by (C) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

ac9uub00000298

4.  Remove the front side frame.
