CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008610500

Symbol Mark

am6zzb00000536

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

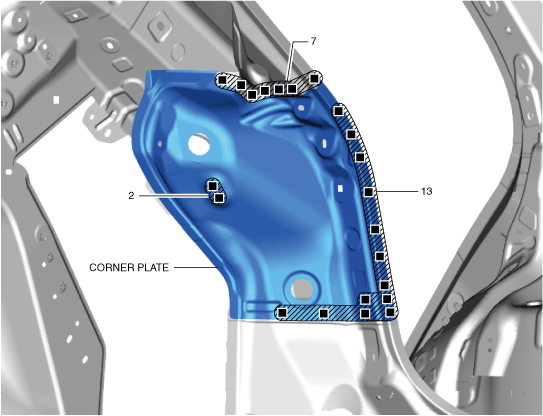

3.  Plug weld the 22 locations indicated shown in the figure, then install the corner plate.
