SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008615300

Symbol Marks

ac3wzb00000109

Removal Procedure

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

ac9uub00000193

2.  Drill the 120 locations indicated by (B) shown in the figure, then remove the side frame (outer) (side sill (outer)).

ac9wzb00000153

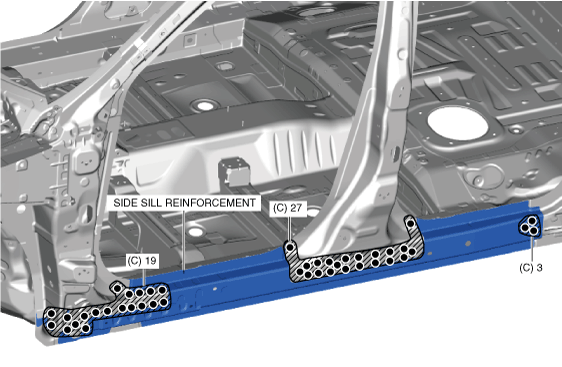

3.  Drill the 49 locations indicated by (C) shown in the figure.

ac9wzb00000154

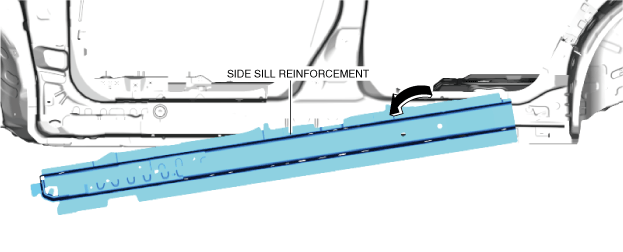

4.  Pull out the side sill reinforcement from the side sill (inner), hinge pillar reinforcement and center pillar reinforcement while rotating it.

ac9wzb00000155
