FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

am2zzb00000446

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Spot weld the 6 locations (LH), 7 locations (RH) indicated by (A) shown in the figure.

5.  Spot weld the 5 locations indicated by (B) the rear wheel housing side shown in the figure.

ac9uub00000308

6.  Install the floor side panel No.2.

Note

•  For floor side panel No. 2 (RH), plug weld the 7 locations indicated by (C) shown in the figure and install the jack bracket.

ac9uub00000175

7.  Place it inside the cabin in the direction of arrow (1) shown in the figure while tilting floor side panel No.1 downward, and lower floor side panel No.1 in the direction of arrow (2).

ac9uub00000176

8.  Plug weld the 28 locations indicated by (D) shown in the figure.

ac9uub00000309

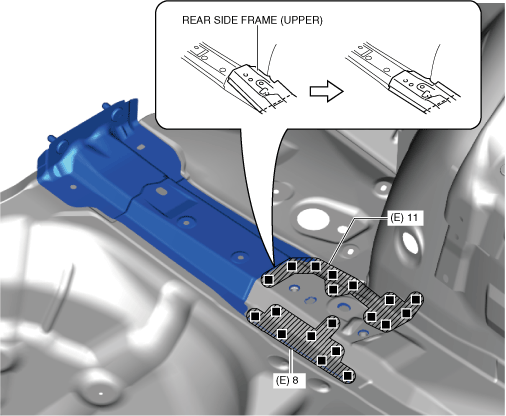

9.  After repairing the ends of the rear side frame (upper), plug weld the 19 locations in area (E) shown in the figure and install the rear side frame (upper) .

ac9uub00000178
