FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Marks

ac3wzb00000121

Removal Procedure

LH

1.  Rough cut the location indicated by (A) shown in the figure.

ac9uub00000180

2.  Rough cut the location indicated by (B) shown in the figure.

3.  Drill the 3 locations indicated by (C) shown in the figure, then remove the front side frame (inner), light bracket and front side frame (outer).

ac9uub00000181

RH

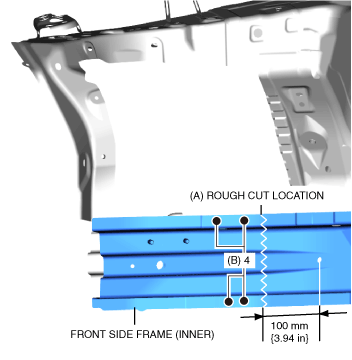

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 4 locations indicated by (B) shown in the figure.

ac9uub00000331

3.  Rough cut the location indicated by (C) shown in the figure.

4.  Drill the 3 locations indicated by (D) shown in the figure, then remove the front side frame (inner), light bracket and front side frame (outer).

ac9uub00000183
