ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Marks

ac3wzb00000151

Removal Procedure

Without sunroof

Caution

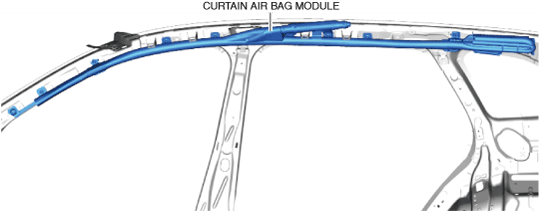

•  Remove the curtain air bag module to prevent damage before servicing.

ac9uub00000241

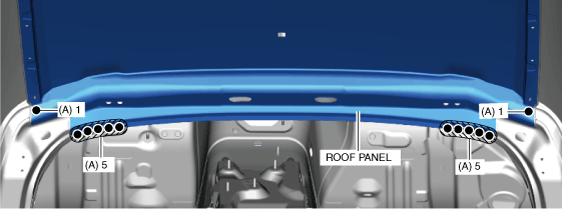

1.  Drill the 109 locations indicated by (A) shown in the figure.

ac9wzb00000067

ac9uub00000243

2.  Remove the roof panel.

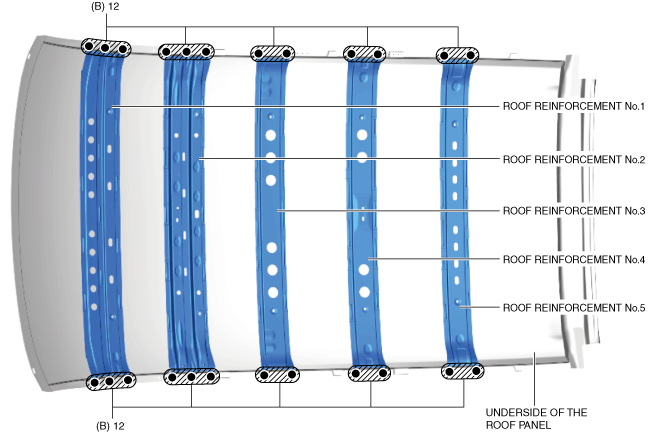

3.  Drill the spot welded 24 locations indicated by (B) shown in the figure from the underside of the roof panel and remove the roof reinforcement No.1, roof reinforcement No.2, roof reinforcement No.3, roof reinforcement No.4 and roof reinforcement No.5.

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

ac9wzb00000068

With sunroof

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

ac9uub00000241

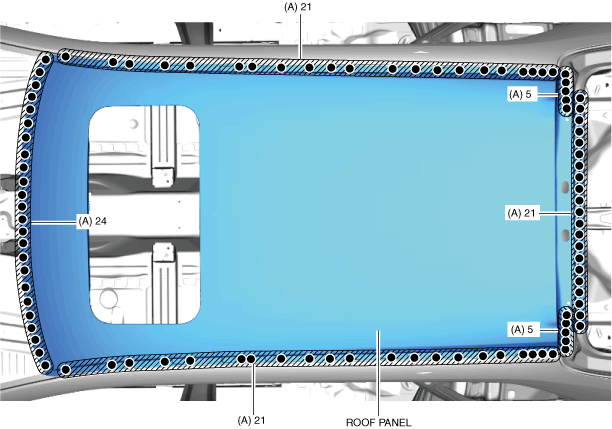

1.  Drill the 109 locations indicated by (A) shown in the figure.

ac9wzb00000069

ac9uub00000243

2.  Remove the roof panel.

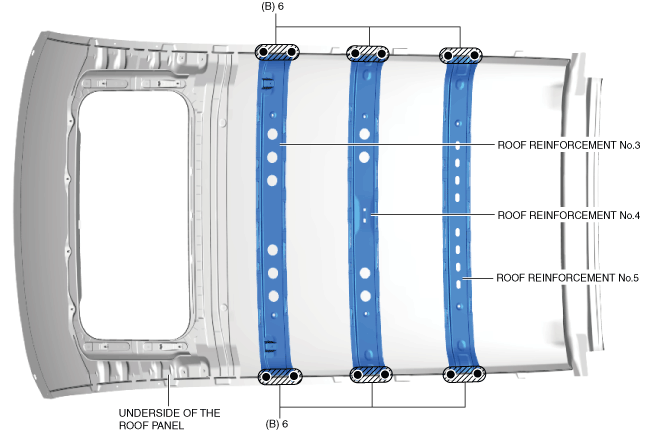

3.  Drill the spot welded 12 locations indicated by (B) shown in the figure from the underside of the roof panel and remove the roof reinforcement No.3, roof reinforcement No.4 and roof reinforcement No.5.

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

ac9wzb00000070
