FRONT PILLAR REMOVAL [PANEL REPLACEMENT]

id098008744700

Symbol Mark

am6zzb00000379

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

Front-side

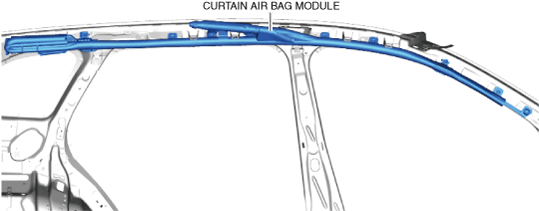

ac9wzb00000162

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

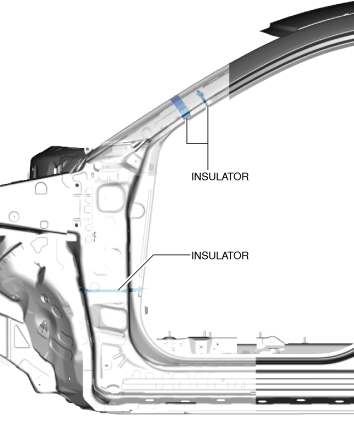

ac9uub00000236

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 104 locations indicated by (B) shown in the figure, then remove the cabin side frame (outer) (front pillar (outer)).

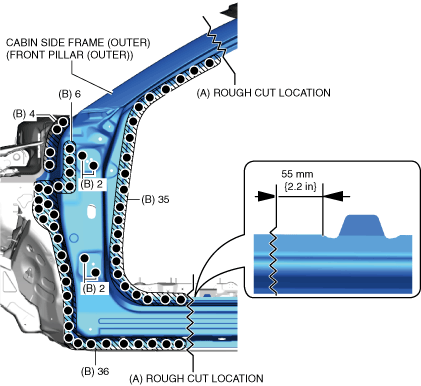

ac9wzb00000137

ac9wzb00000138

3.  Drill the 28 locations indicated by (C) shown in the figure.

4.  Drill the 6 locations indicated by (D) from the room side shown in the figure, then front pillar reinforcement (lower) and hinge reinforcement as a single unit.

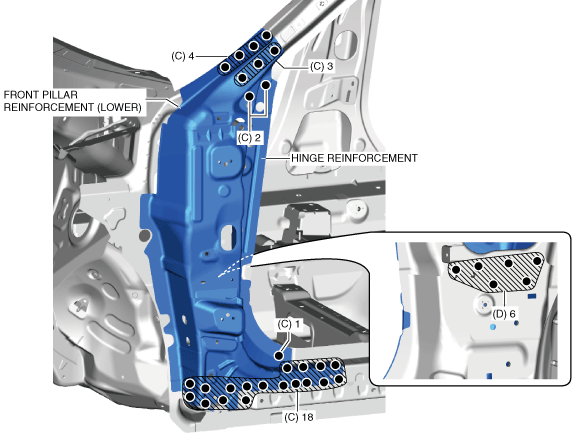

ac9wzb00000163

5.  Rough cut the location indicated by (E) shown in the figure.

6.  Drill the 2 locations indicated by (F) shown in the figure.

ac9wzb00000142

7.  Remove the front pillar reinforcement (upper).

8.  Rough cut location indicated by (G) shown in the figure.

9.  Drill the 4 locations indicated by (H) shown in the figure.

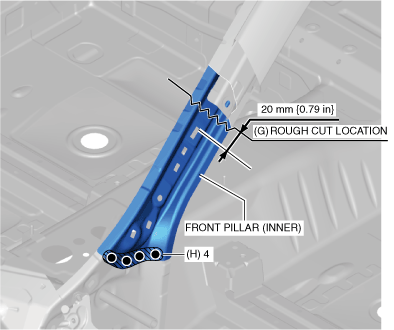

ac9uub00000207

10.  Remove the front pillar (inner).
