REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

am6zzb00000411

Removal Procedure

Caution

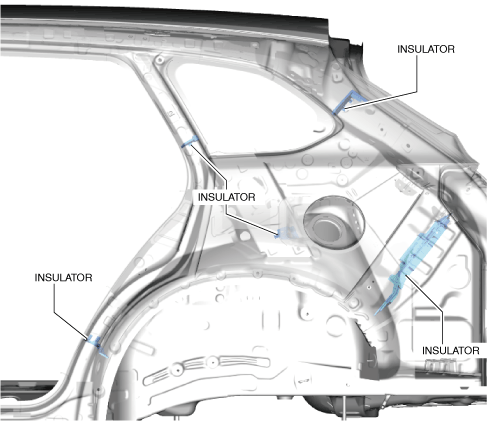

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

ac9uub00000239

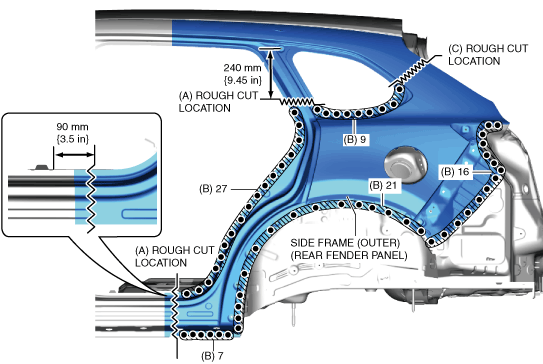

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 87 locations indicated by (B) shown in the figure.

ac9wzb00000156

ac9wzb00000157

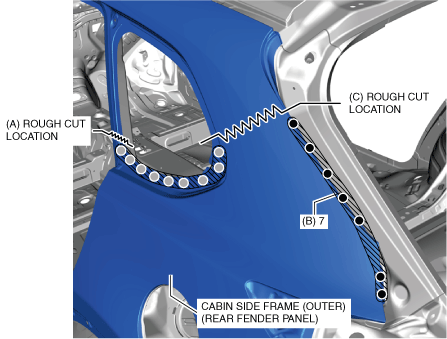

3.  Rough cut the 1 locations indicated by (C) shown in the figure

4.  Remove the cabin side frame (outer) (rear fender panel).
