WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Marks

ac9uub00000136

Removal Procedure

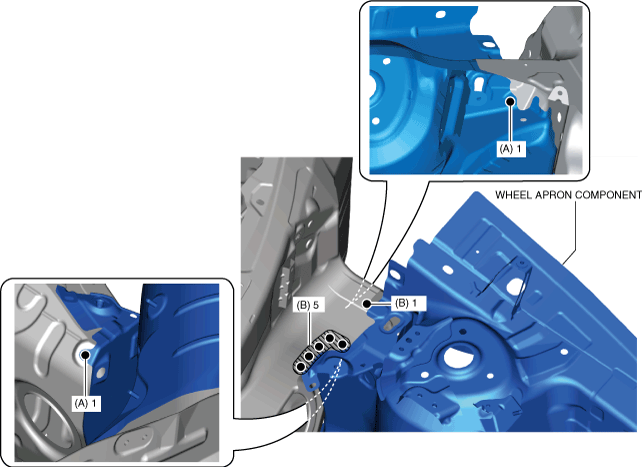

1.  Grind the 2 location indicated by (A) shown in the figure.

2.  Drill the 6 locations indicated by (B) shown in the figure.

ac9uub00000311

3.  Grind the 4 locations indicated by (C) shown in the figure.

4.  Drill the 23 locations indicated by (D) from the wheel housing shown in the figure.

5.  Drill the 7 locations indicated by (E) from the room shown in the figure.

ac9uub00000138

6.  Remove the wheel apron component.
