REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Mark

am6zzb00000451

Removal Procedure

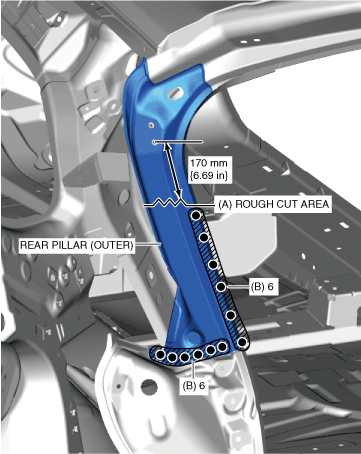

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 12 locations indicated by (B) shown in the figure.

ac9uub00000218

3.  Remove the rear pillar (outer).
