FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]


id098008828300


Symbol Mark

am6zzb00000345

Removal Procedure

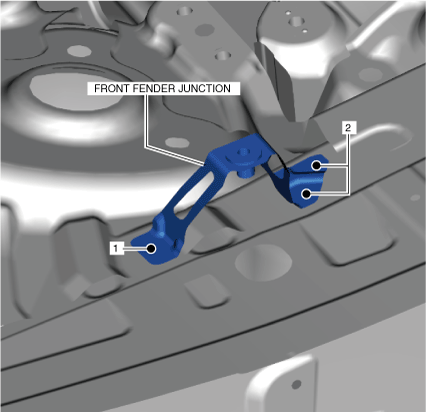

1.  Drill the 3 locations indicated shown in the figure.

Note
•  When drilling the 3 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.
ac9uub00000104

2.  Remove the front fender junction.
