REAR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008829100

Symbol Mark

ac5wzb00000084

Removal Procedure

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

ac9uub00000153

1.  Drill the 36 locations indicated by (A) shown in the figure.

Note

•  When removing the anchorage bracket separately, drill the 6 locations indicated by (B).

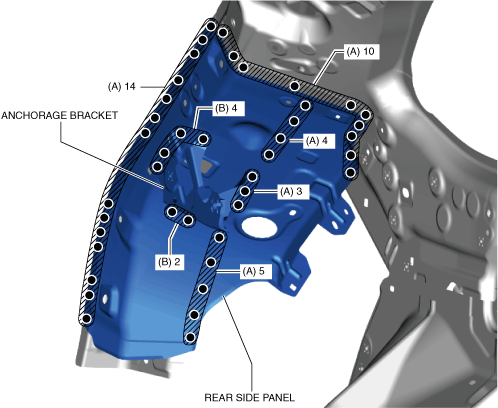

ac9uub00000395

2.  Remove the rear side panel.
