REAR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829200

Symbol Mark

ac5wzb00000229

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

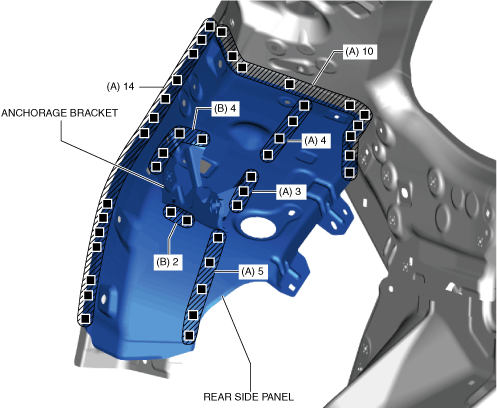

4.  Plug weld the 36 locations by (A) shown in the figure, then install the rear side panel.

Note

•  When replacing the anchorage bracket separately, weld the 6 locations indicated by (B).
