COWL SIDE REINFORCEMENT (REAR) INSTALLATION [PANEL REPLACEMENT]

id098008950300

Symbol Marks

ac3wzb00000052

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

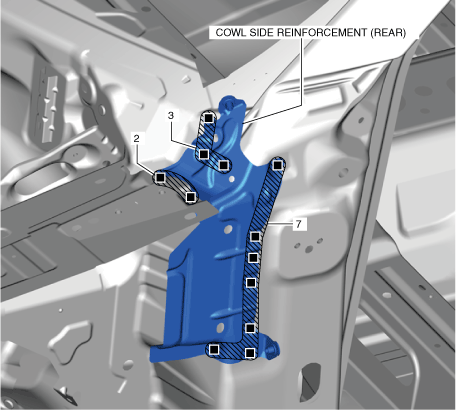

4.  Plug weld the 12 locations indicated shown in the figure, then install the cowl side reinforcement (rear).
