DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]


id098009745700

•  After repairing the body, attach the sound damping sheet to the location shown in the figure for noise insulation.

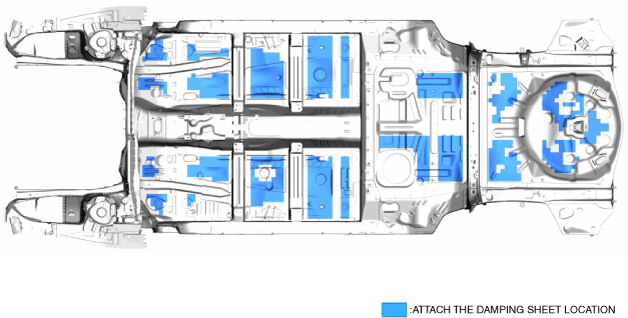

L.H.D.

ac9uub00000277

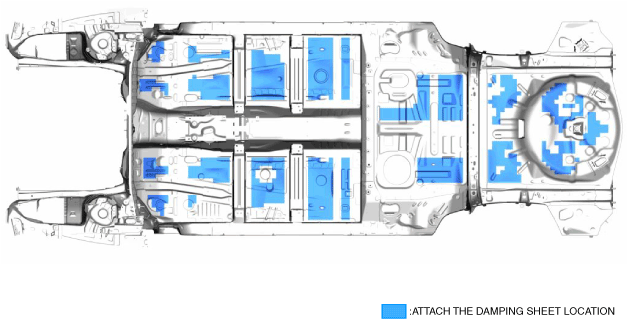

R.H.D.

ac9wzb00000017
