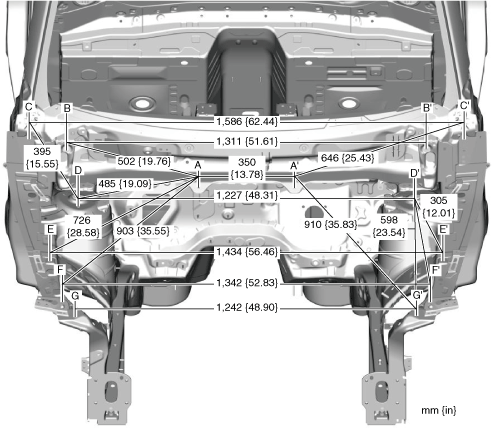

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010740600
ac9uub00000278
|
ac9wzb00000066
|
|

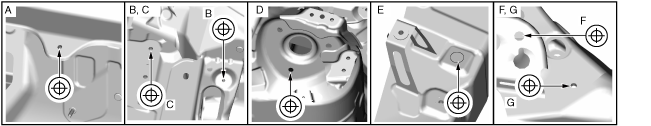

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Cowl panel installation nut
|
M8
|
|
B
|
Windshield wiper motor and link installation nut
|
M6
|
|
C
|
Bonnet hinge installation nut
|
M8
|
|
D
|
Suspension housing (upper) datum hole
|
Φ10.2 {0.402}
|
|
E
|
Shroud side member datum hole
|
Φ16 {0.63}
|
|
F
|
Shroud side member datum hole
|
Φ10 {0.39}
|
|
G
|
Shroud upper member installation nut
|
M6
|
