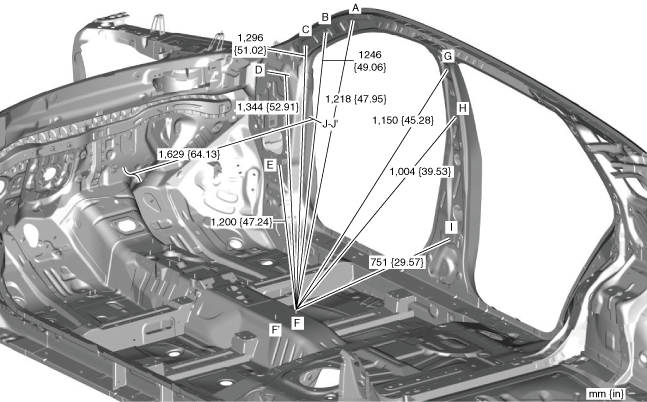

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010743300
ac9uub00000282
|
ac9wzb00000019
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
Curtain air bag module installation nut
|
M6
|
|
C
|
A-pillar (inner) datum hole
|
Φ12 {0.47}
|
|
D
|
Dashboard installation stud pin
|
-
|
|
E
|
Side sill (inner) installation nut
|
M8
|
|
F
|
Rear console bracket installation bolt
|
M6
|
|
G
|
Front seat belt upper anchor installation nut
|
M10
|
|
H
|
Front seat belt upper anchor installation nut
|
M10
|
|
I
|
Pre-tensioner seat belt installation nut
|
M6
|
|
J
|
Front door checker installation hole
|
Φ4 {0.2}
|
