ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]
id098010743400
ac9uub00000284
|
ac9uub00000285
|
|

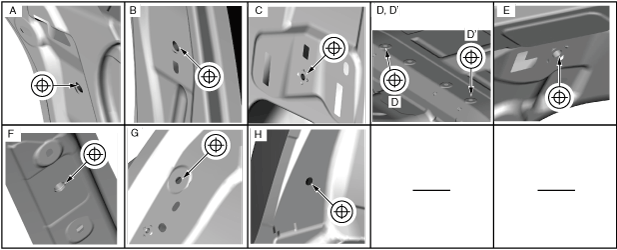

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Front seat belt upper anchor installation nut
|
M10
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Crossmember No.3 datum hole
|
Φ10 {0.39}
|
|
E
|
Curtain air bag module installation nut
|
M6
|
|
F
|
Second-row seat belt upper anchor installation nut
|
M14
|
|
G
|
Trunk side trim installation hole
|
Φ8.6 {0.34}
|
|
H
|
Rear pillar (inner) datum hole
|
Φ12 {0.47}
|
