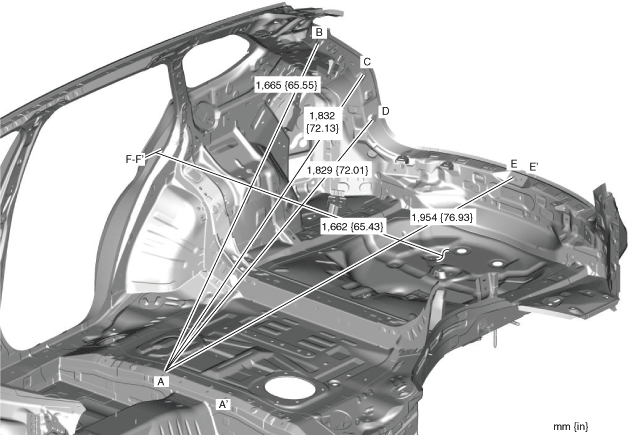

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010746200
ac9uub00000288
|
ac9wzb00000065
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
Φ10 {0.39}
|
|
B
|
Rear side panel datum hole
|
Φ10 {0.39}
|
|
C
|
Trunk side trim installation hole
|
Φ8.6 {0.34}
|
|
D
|
Trunk side trim installation hole
|
Φ8.6 {0.34}
|
|
E
|
Liftgate striker installation nut
|
M8
|
|
F
|
Rear door striker installation nut
|
M8
|
