CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

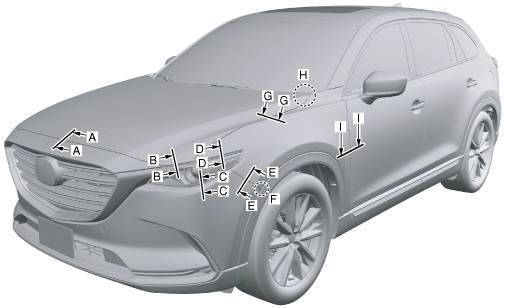

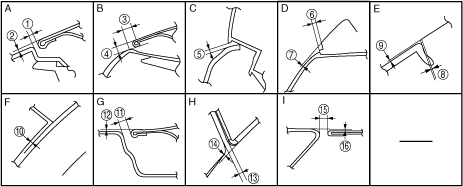

Front view

ac9wzb00000021
ac9uub00000295

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
3.5 {0.14}
5.3 {0.21}
1.7 {0.067}
2.0 {0.079}
2
0
2.0 {0.079}
-2.0 {-0.079}
-
B
3
7.0 {0.28}
9.0 {0.35}
5.0 {0.20}
-
4
2.6 {0.10}
4.5 {0.18}
0.7 {0.03}
-
C
5
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
1.5 {0.059}
D
6
2.3 {0.091}
3.6 {0.14}
1.0 {0.039}
1.3 {0.051}
7
-1.8 {-0.071}
-0.4 {-0.02}
-3.2 {-0.13}
-
E
8
0.5 {0.02}
1.3 {0.051}
0.5 {0.02}
-
9
0.5 {0.02}
1.2 {0.047}
-0.2 {-0.008}
-
F
10
0
1.0 {0.039}
-1.0 {-0.039}
-
G
11
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
12
0
1.0 {0.039}
-1.0 {-0.039}
-
H
13
4.0 {0.16}
5.0 {0.20}
3.0 {0.12}
1.0 {0.039}
14
0
1.0 {0.039}
-1.0 {-0.039}
-
I
15
3.8 {0.15}
4.8 {0.19}
2.8 {0.11}
1.0 {0.039}
16
-0.5 {-0.02}
0.5 {0.02}
-1.5 {-0.059}
-

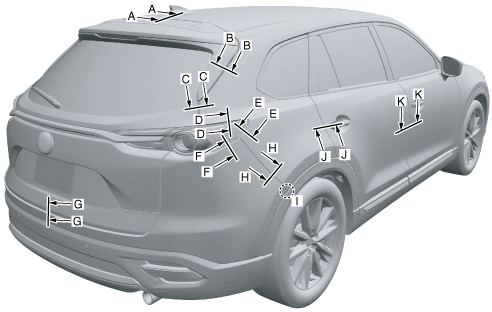

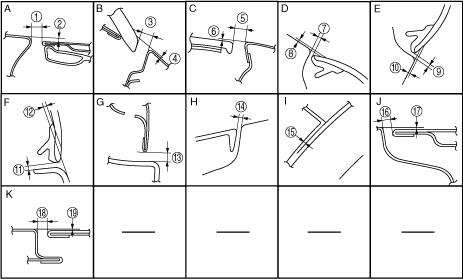

Rear view

ac9uub00000296
ac9uub00000297

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
6.0 {0.24}
7.0 {0.28}
5.0 {0.20}
1.2 {0.047}
2
-1.7 {-0.067}
-0.7 {-0.03}
-2.7 {-0.11}
-
B
3
5.1 {0.20}
7.2 {0.28}
3.0 {0.12}
2.1 {0.083}
4
1.2 {0.047}
3.1 {0.12}
-0.7 {-0.03}
-
C
5
6.0 {0.24}
7.5 {0.30}
3.5 {0.14}
2.0 {0.079}
6
-1.0 {-0.039}
1.0 {0.039}
-3.0 {-0.12}
-
D
7
1.8 {0.071}
3.0 {0.12}
0.6 {0.02}
1.2 {0.047}
8
1.0 {0.039}
2.5 {0.098}
-0.5 {-0.02}
-
E
9
1.8 {0.071}
3.0 {0.12}
0.6 {0.02}
1.2 {0.047}
10
0.8 {0.03}
2.3 {0.091}
-0.7 {-0.03}
-
F
11
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
-
12
1.1 {0.043}
2.6 {0.10}
-0.4 {-0.02}
-
G
13

With power liftgate (PLG)
5.6 {0.22}
7.6 {0.30}
3.6 {0.14}
2.0 {0.079}
Without power liftgate (PLG)
6.0 {0.24}
8.0 {0.31}
4.0 {0.16}
2.0 {0.079}
H
14
0.5 {0.02}
1.3 {0.051}
0.5 {0.02}
-
I
15
0
1.0 {0.039}
-1.0 {-0.039}
-
J
16
3.8 {0.15}
4.8 {0.19}
2.8 {0.11}
1.0 {0.039}
17
0
1.0 {0.039}
-1.0 {-0.039}
-
K
18
3.8 {0.15}
4.8 {0.19}
2.8 {0.11}
1.0 {0.039}
19
0
1.0 {0.039}
-1.0 {-0.039}
-
