CRUISE CONTROL SWITCH

id151200001000


Purpose

•  The cruise control switch can switch the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function) on/off and perform various settings.

Function

•  The cruise control switch sends electric signals for each switch operation to the start stop unit.

Construction

•  Installed to right-hand spoke of the steering wheel.

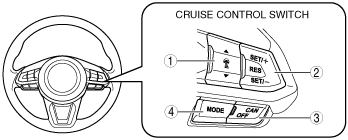

Function of Buttons

ac9uun00001417

No.

Name

Function
1
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)
2
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Increases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
Cancel switch
Cancels the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
MRCC OFF switch
Turns off the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)
4
MRCC ON switch
Turns on the MRCC system/mazda radar cruise control with stop & go function (MRCC with stop & go function)


Fail-safe

•  Not applicable
