•  The driver can optionally choose to switch the blind spot monitoring (BSM) system to operational or non-operational.

•  The blind spot monitoring (BSM) off switch sends a switch operation signal to the instrument cluster.

•  The indicator light turns on when the blind spot monitoring (BSM) OFF switch is on.

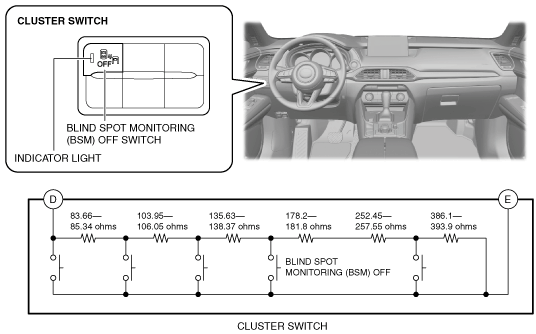

•  The blind spot monitoring (BSM) off switch is built into the cluster switch.

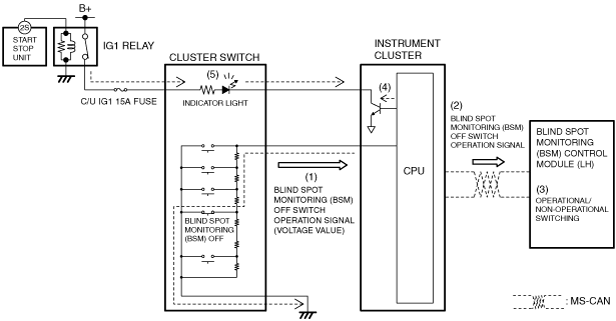

1.  When the blind spot monitoring (BSM) off switch is operated, a blind spot monitoring (BSM) off switch operation signal is sent (1) to the instrument cluster.

2.  The instrument cluster sends (2) a blind spot monitoring (BSM) off switch operation signal to the blind spot monitoring (BSM) control module (LH) via CAN communication based on the switch operation signal (detected voltage value).

3.  When the blind spot monitoring (BSM) control module (LH) receives the blind spot monitoring (BSM) off switch operation signal from the instrument cluster, it switches (3) the blind spot monitoring (BSM) system to operational or non-operational.

4.  The instrument cluster turns on (4) the transistor when the blind spot monitoring (BSM) OFF switch is on.

5.  When the transistor turns on, a ground circuit with the indicator light is established, and the indicator light turns on (5).

ac9wzn00001477

•  Not applicable
