MAZDA RADAR CRUISE CONTROL (MRCC) MAIN INDICATION

id151300003300

Purpose

• The MRCC main indication notifies the driver that the MRCC system is activated and the MRCC operation condition is not met or the MRCC is canceled temporarily.

Functions

• The instrument cluster displays the MRCC main indication based on the system condition indication request signal sent from the PCM via CAN communication.

Structure/Construction

• The MRCC main indication (white) is displayed in the multi-information display.

ac9uun00001610

Operation

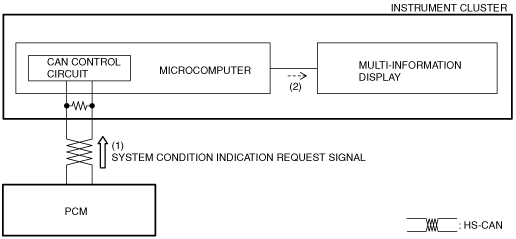

1. The instrument cluster receives (1) a system condition indication request signal from the PCM via CAN communication.

2. The instrument cluster displays (2) the MRCC main indication in the multi-information display based on the system condition indication request signal.

ac9uun00002583

Fail-safe

• Not applicable
