MAZDA RADAR CRUISE CONTROL (MRCC) SET INDICATION

id151300003400

Purpose

• The MRCC set indication notifies the driver that the MRCC system is operating either in continuous constant speed control mode or headway control mode.

Functions

• The instrument cluster displays the MRCC set indication based on the system condition indication request signal sent from the PCM via CAN communication.

Structure/Construction

• The MRCC set indication (Green) is displayed in the multi-information display.

ac9uun00001612

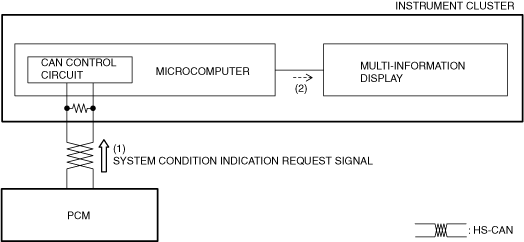

Operation

1. The instrument cluster receives (1) a system condition indication request signal from the PCM via CAN communication.

2. The instrument cluster displays (2) the MRCC set indication in the multi-information display based on the system condition indication request signal.

ac9wzn00001923

Fail-safe

• Not applicable
