POWERFLOW STRUCTURE

id051700102200

Description of Components

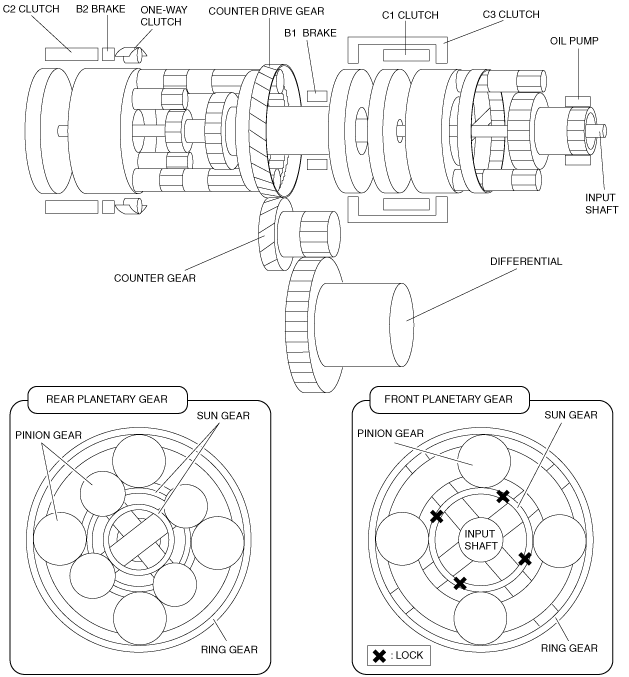

acxuun00000680

• The number of pinion gears differs depending on the engine displacement and vehicle.

― CX-7

• Front: 5 pinions

• Rear: 3 pinions

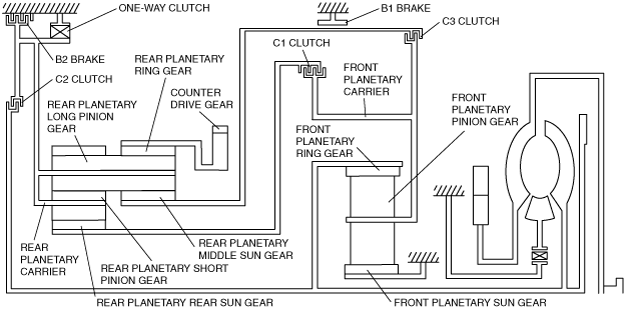

acxuun00000681
