B1 BRAKE PISTON DISASSEMBLY/ASSEMBLY

id051700500200

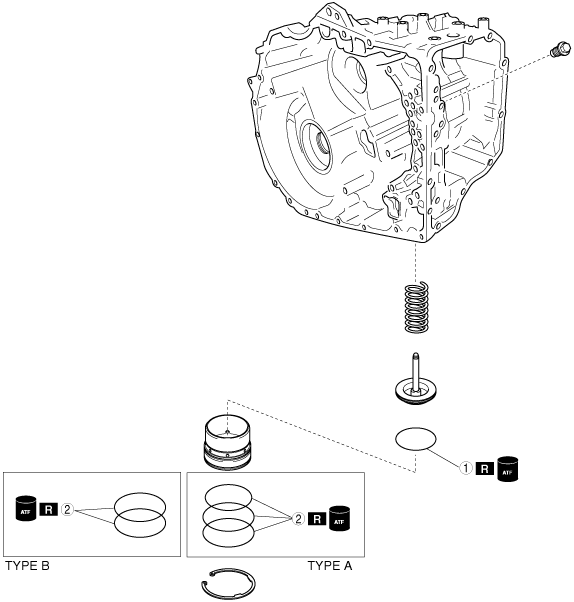

Components

bawwza00000007

1	O-ring
2	O-ring

Disassembly Procedure

1.  Remove the O-ring from the B1 brake piston.

bawuua00000352

2.  Remove the O-rings from the brake piston cover.

bawuua00000353

Assembly Procedure

1.  Apply ATF to the new O-rings.

2.  Install the O-rings to the brake piston cover.

bawuua00000353

Number of O-ring

•  Type A: 3

•  Type B: 2

3.  Apply ATF to a new O-ring.

4.  Install the O-ring to the B1 brake piston.

bawuua00000352
