REAR PLANETARY GEAR COMPONENT AND ONE-WAY CLUTCH COMPONENT DISASSEMBLY
id051700501200

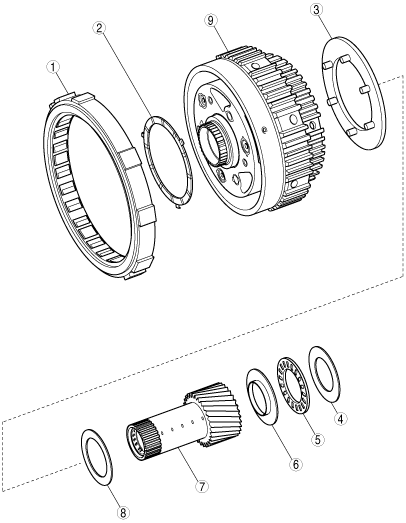

Components
bawuua00000514
|
|
1
|
One-way clutch component
|
|
2
|
Thrust washer
|
|
3
|
Thrust washer
|
|
4
|
Bearing race
|
|
5
|
Thrust bearing
|
|
6
|
Bearing race
|
|
7
|
Planetary sun gear
|
|
8
|
Bearing race
|
|
9
|
Rear planetary gear component
|
Disassembly Procedure
1. Remove the one-way clutch component from the rear planetary gear component.
bawuua00000515
|
2. Remove the thrust washer from the rear planetary gear component.
bawuua00000516
|
3. Remove the thrust washer from the rear planetary gear component.
bawuua00000517
|
4. Remove the planetary sun gear and bearing races from the rear planetary gear component.
bawuua00000518
|
