REAR PLANETARY GEAR COMPONENT AND ONE-WAY CLUTCH COMPONENT ASSEMBLY

id051700501400

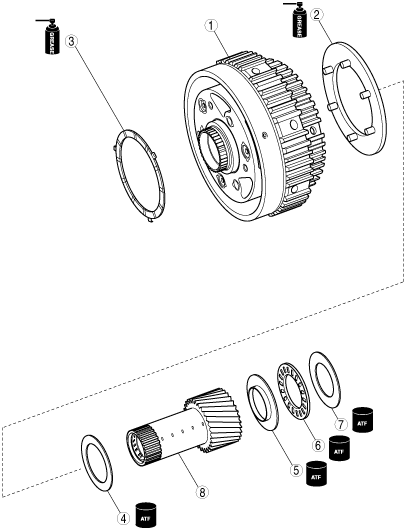

Components

bawuua00000521

1	Rear planetary gear component
2	Thrust washer
3	Thrust washer
4	Bearing race
5	Bearing race
6	Thrust bearing
7	Bearing race
8	Planetary sun gear

Assembly Procedure

Caution

•  Apply grease to the mounting surface of the thrust washer so that it will not drop when the rear planetary gear component is installed.

•  Do not apply grease to the oil holes of the thrust washer.

1.  Apply grease to the thrust washer.

2.  Install the thrust washer to the rear planetary gear component.

bawuua00000522

Caution

•  Apply grease to the mounting surface of the thrust washer so that it will not drop when the rear planetary gear component is installed.

•  Do not apply grease to the oil holes of the thrust washer.

3.  Apply grease to the thrust washer.

4.  Install the thrust washer to the rear planetary gear component.

bawuua00000523

Caution

•  Apply grease to the mounting surface of the thrust washer so that it will not drop when the rear planetary gear component is installed.

•  Do not apply grease to the oil holes of the thrust washer.

5.  Apply ATF to the bearing races and the thrust bearing.

6.  Install the bearing races to the planetary sun gear as shown in the figure.

bawuua00000524

7.  Install the planetary sun gear to the rear planetary gear component.
