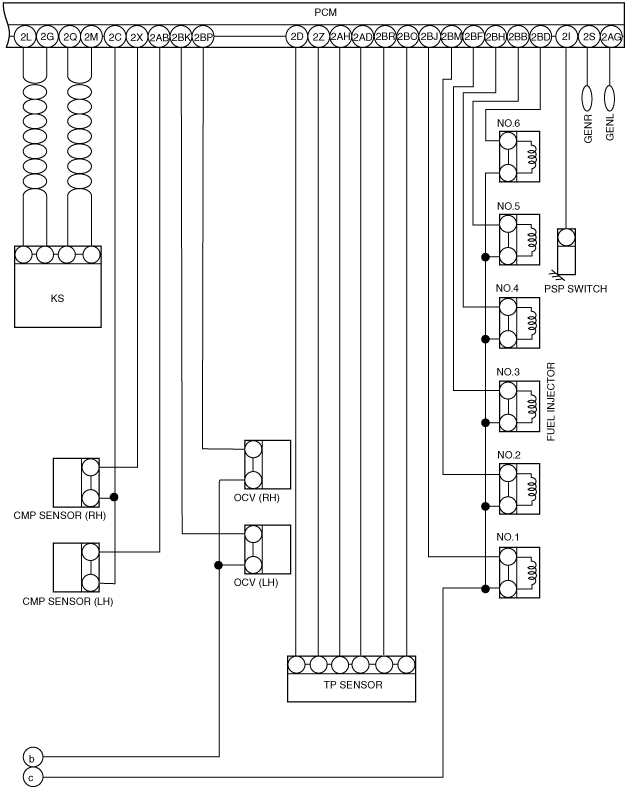

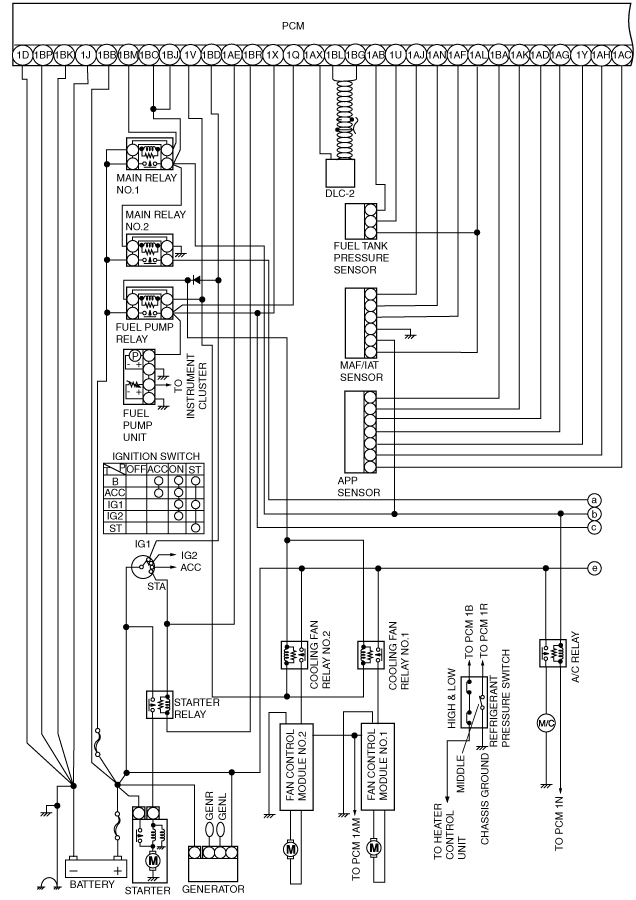

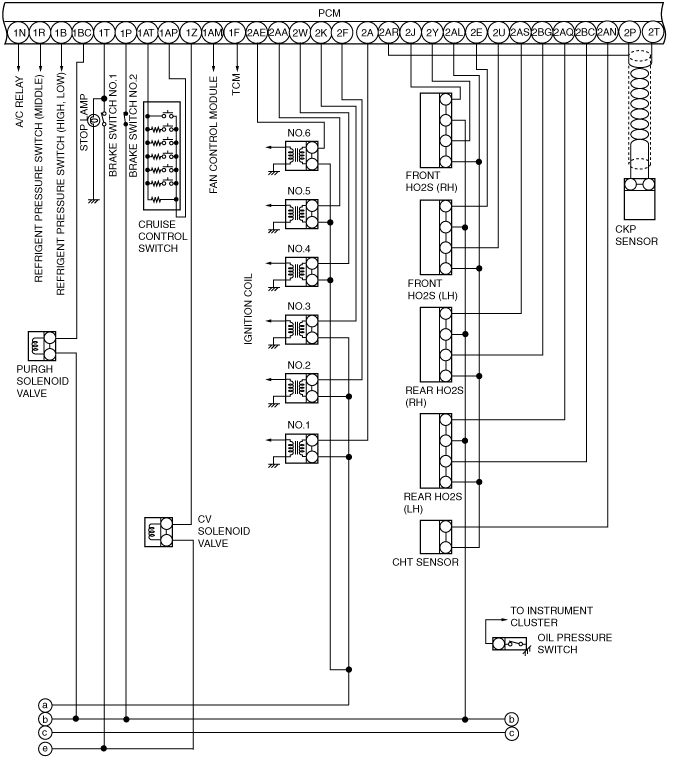

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI-3.7 (PCM CONNECTOR (2 TYPES))]

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI-3.7 (PCM CONNECTOR (2 TYPES))]

id0102e3800100

ac9wzw00001003

ac9wzw00000037

ac9wzw00001004
