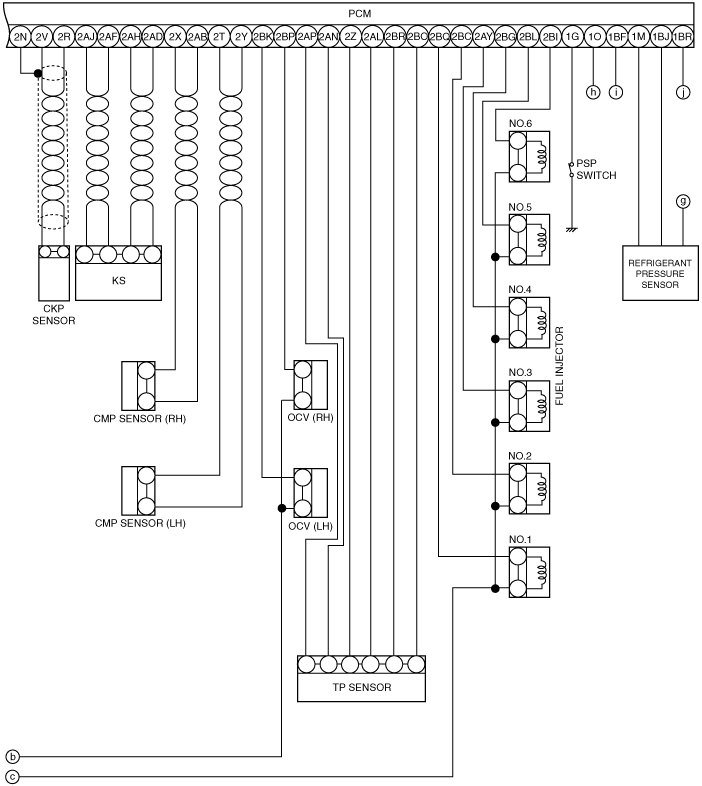

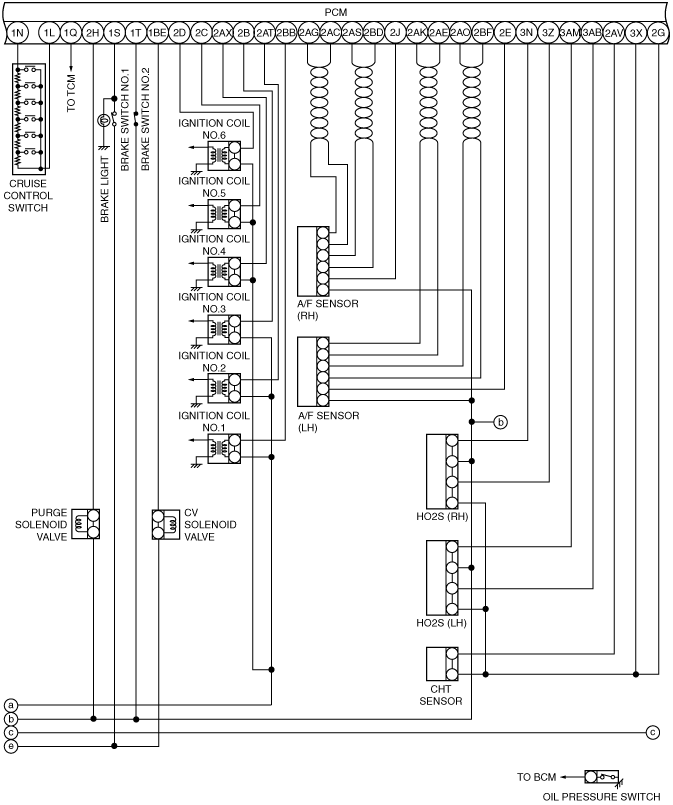

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI-3.7 (PCM CONNECTOR (3 TYPES))]

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI-3.7 (PCM CONNECTOR (3 TYPES))]

id0102e4800100

ac9wzw00002019

ac9wzw00002020

ac9wzw00002021
