SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZI-3.7]

id0103d2800100

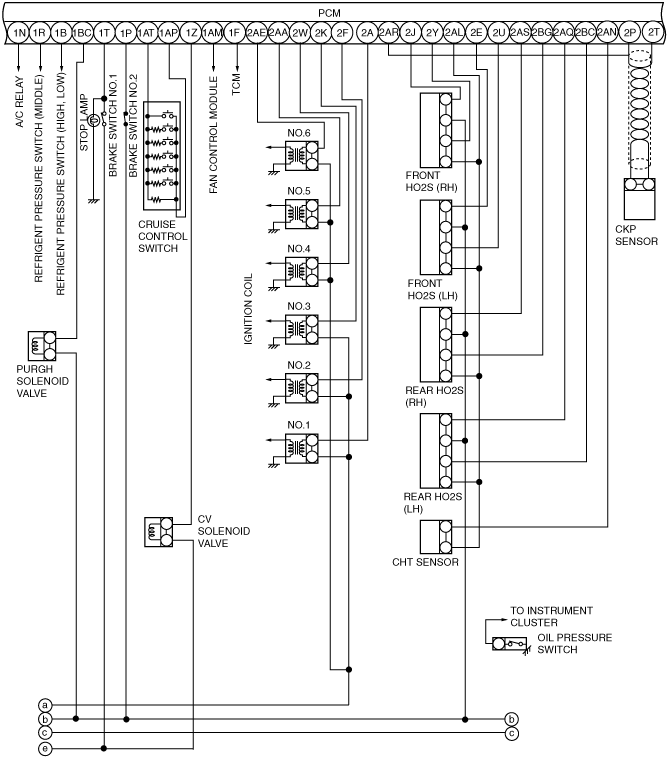

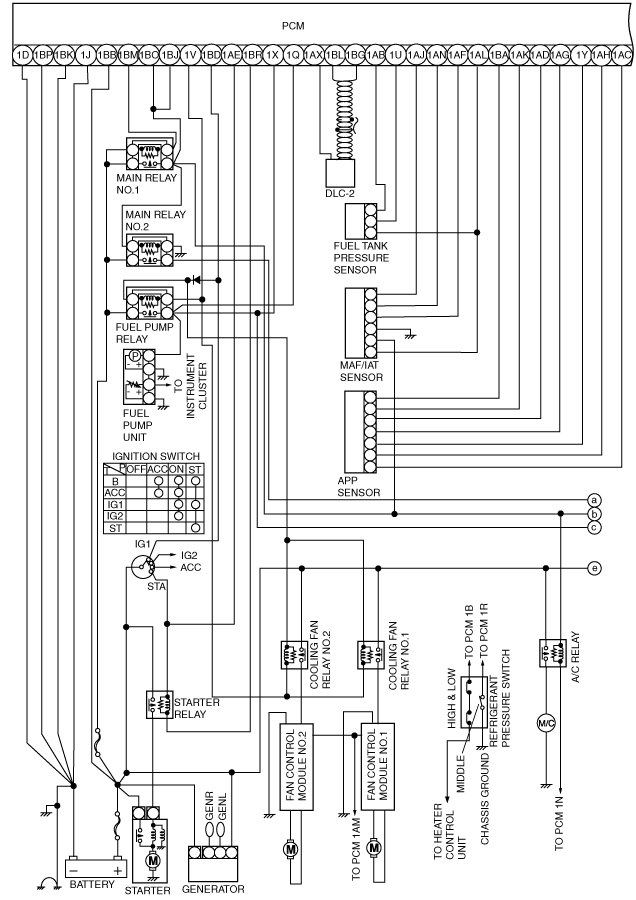

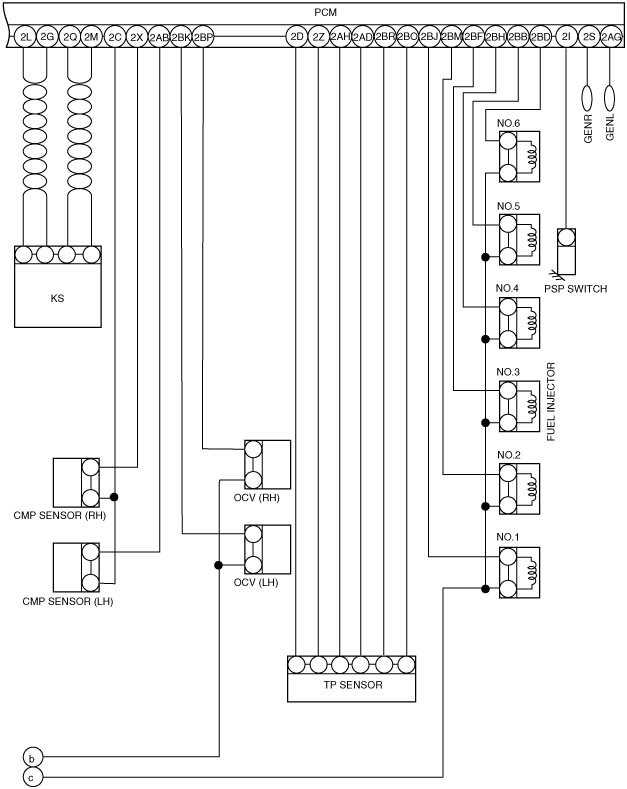

PCM Connector (2 Types)

ac9wzw00001001

ac9wzw00002376

ac9wzw00001002

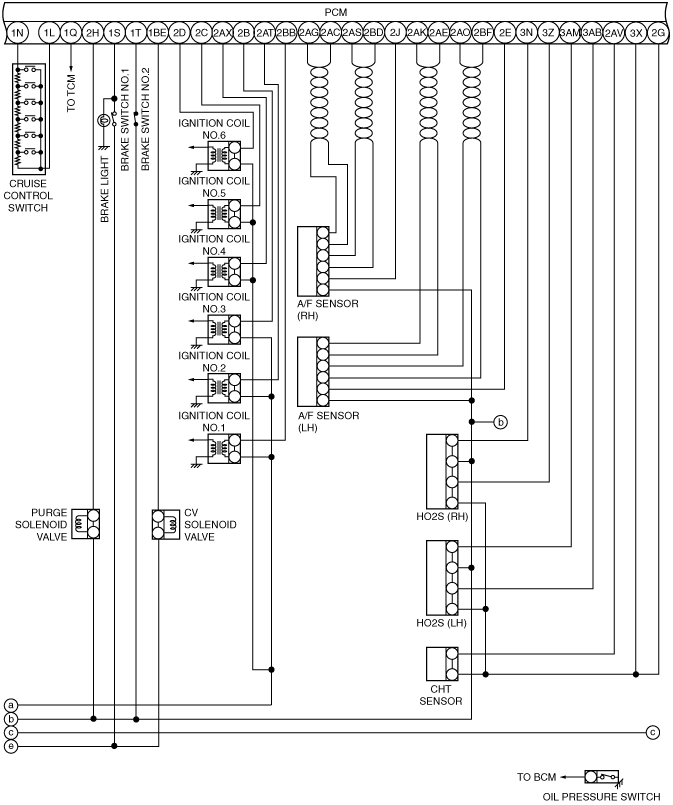

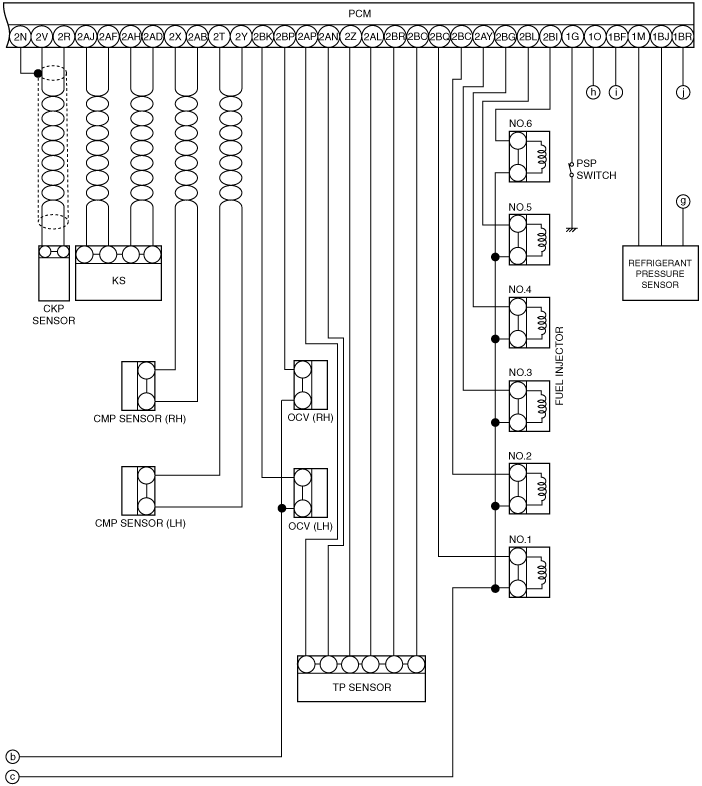

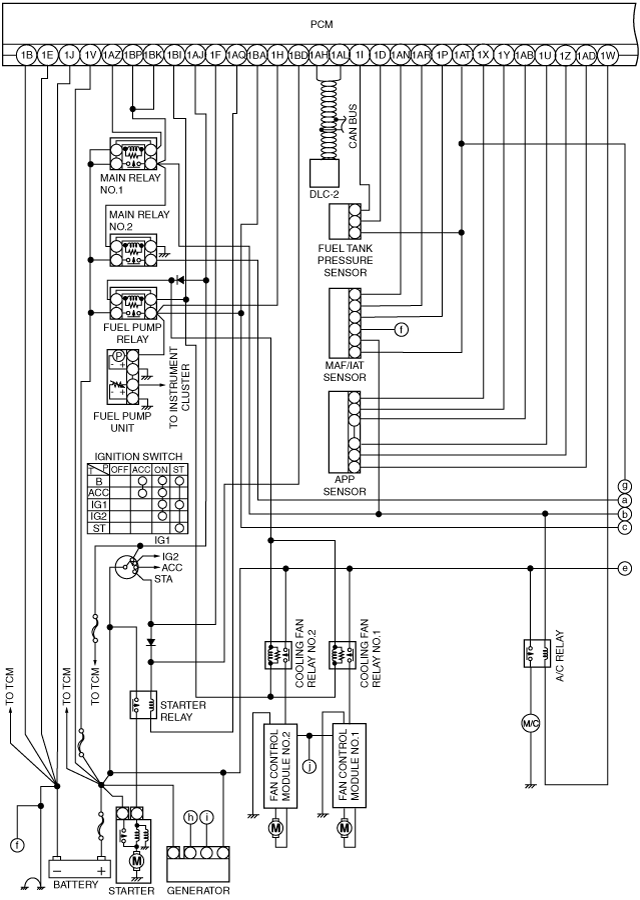

PCM Connector (3 Types)

ac9wzw00001799

ac9wzw00002377

ac9wzw00002378
