FAN CONTROL MODULE CONSTRUCTION/OPERATION [MZI-3.7]

id0112d3100600


Construction

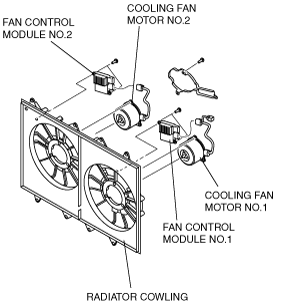

•  Fan control modules No.1 and No.2 are installed on the radiator cowling.
ac9wzn00000381

Operation

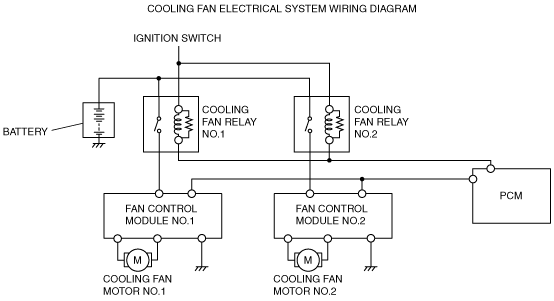

•  The fan control modules No.1 and No.2 drive the each cooling fan motors based on the cooling fan control signals sent by the PCM. (See ELECTRICAL FAN CONTROL OUTLINE [MZI-3.7].)
•  The fan control module allows continuously variable control of the cooling fan motor rotation rate, reducing fan operation noise and power consumption.
ac9wzn00000468

Fail-safe function

1.  Over-current fail-safe

―  If current to the fan motor exceeds the specified value, the cooling fan motor stops running for a specified period of time.

2.  Over-heat fail-safe

―  If the internal temperature of the fan control module exceeds a specified temperature, the cooling fan motor starts running at high speed. If the temperature continues to increase and exceeds a specified temperature, the cooling fan motor stops running.

3.  Input signal open circuit fail-safe

―  If there is an open circuit in the wiring harness between the PCM and fan control module, the cooling fan motor runs at high speed.
