EMISSION SYSTEM STRUCTURAL VIEW [MZI-3.7]

id0116d2100200

Engine Compartment Side

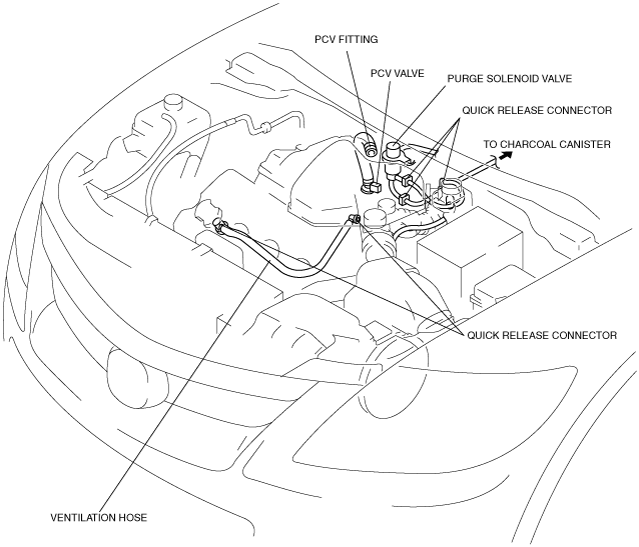

PCM connector (2 types)

ac9wzn00000691

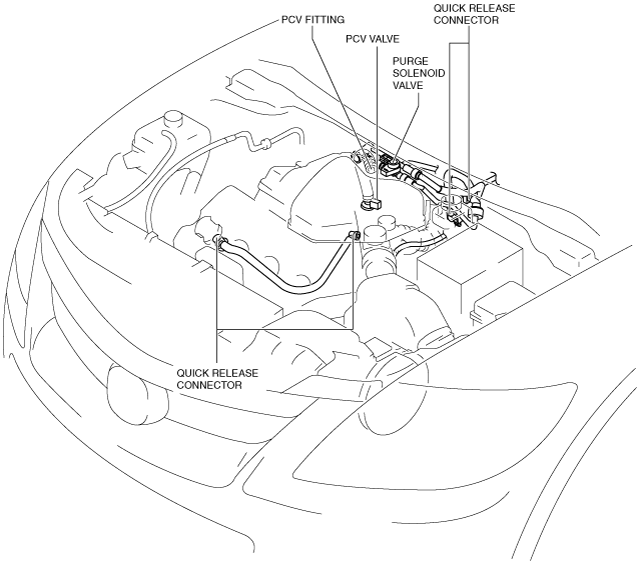

PCM connector (3 types)

ac9wzn00000538

Exhaust System Side

ac9wzn00000289

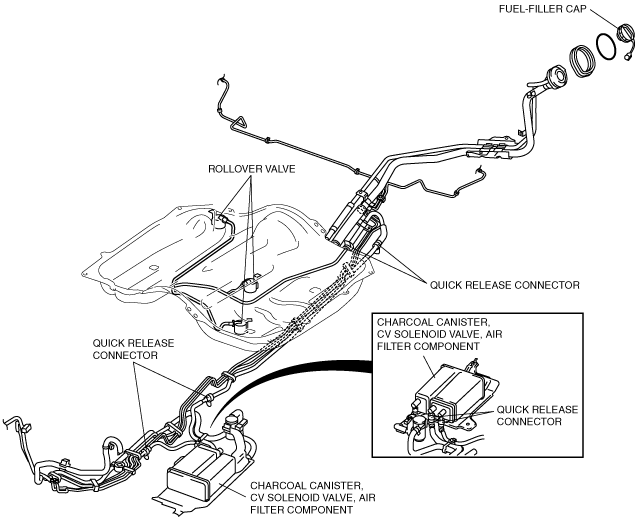

Fuel Tank Side

2WD

ac9wzn00000290

4WD

ac9wzn00000291
