POSITIVE CRANKCASE VENTILATION (PCV) FITTING REMOVAL/INSTALLATION [MZI-3.7]

id0116d2309700

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

2.  Remove in the order indicated in the table.

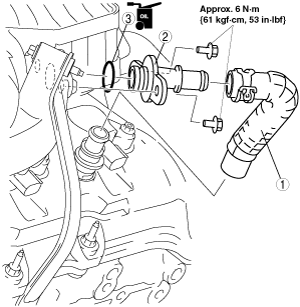

ac9wzw00002207

1	PCV valve hose
2	PCV fitting
3	O-ring

3.  Install in the reverse order of removal.
