STARTER DISASSEMBLY/ASSEMBLY [MZI-3.7]
id0119c2800400

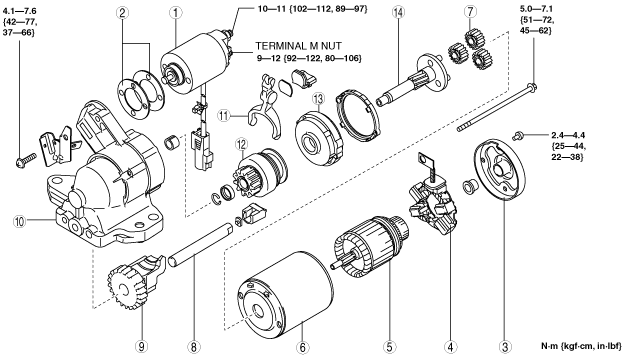

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
ac9wzw00001206
|
|
1
|
Magnetic switch
|
|
2
|
Adjustment washer
|
|
3
|
Rear housing
|
|
4
|
Brush and brush holder
|
|
5
|
Armature
|
|
6
|
Yoke
|
|
7
|
Planetary gear
|
|
8
|
Pinion shaft
|
|
9
|
Pinion
|
|
10
|
Front cover
|
|
11
|
Lever
|
|
12
|
Drive pinion
|
|
13
|
Internal gear
|
|
14
|
Gear shaft
|
