CONTROL SYSTEM WIRING DIAGRAM [MZI-3.7]

id0140c3800400

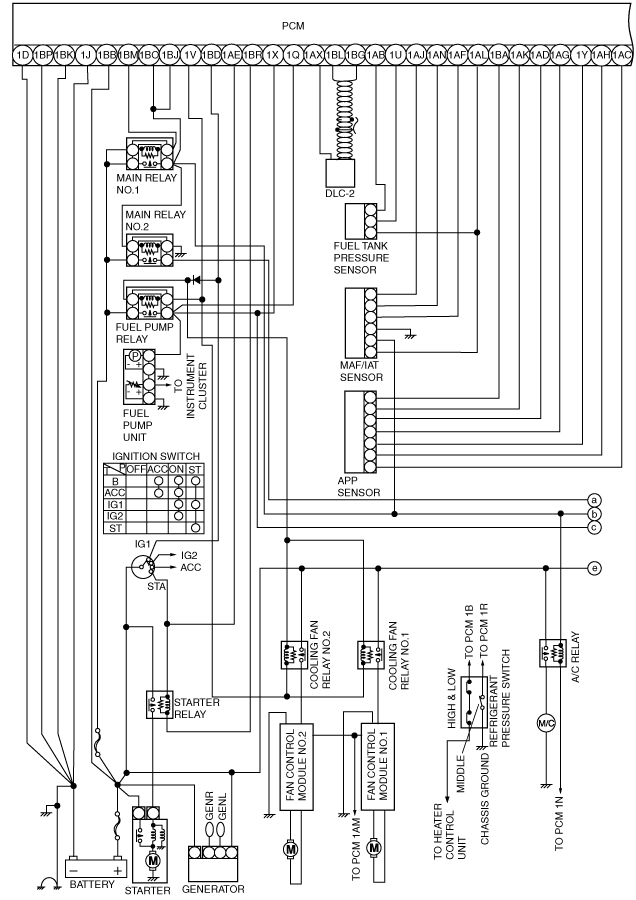

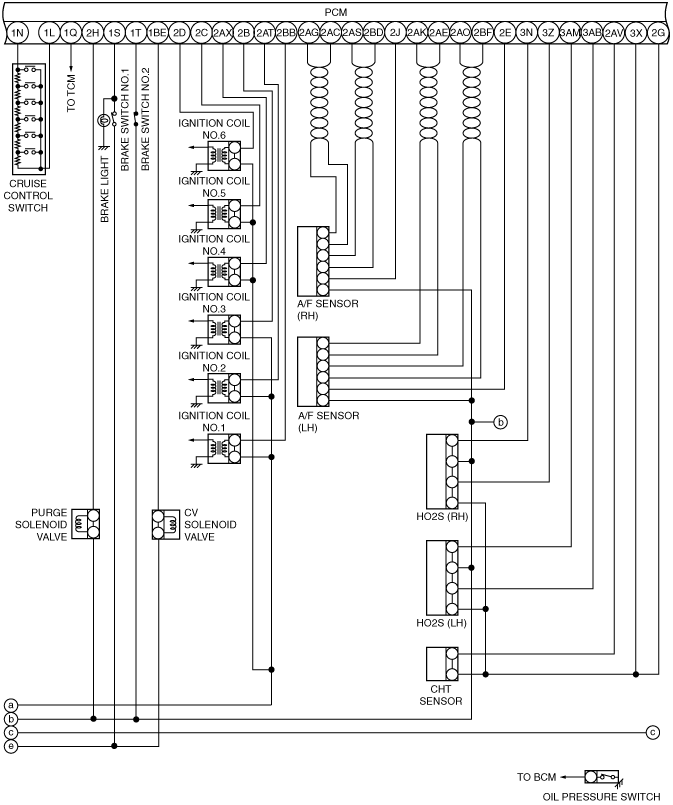

PCM Connector (2 Types)

ac9wzw00002368

ac9wzw00000039

ac9wzw00002369

PCM Connector (3 Types)

ac9wzw00001728

ac9wzw00002370

ac9wzw00002371
