PCM REMOVAL/INSTALLATION [MZI-3.7]

id0140c3802400


PCM Connector (2 Types)

Note
•  For replace the PCM, Setup the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION [MZI-3.7].)

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

2.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

Note
•  Only 2 PCM connectors.

3.  Disconnect the PCM connectors.

4.  Remove the PCM and bracket as and assembly.

5.  Remove the PCM from bracket.

6.  When replacing the PCM on the vehicles, perform the following:

•  PCM parameter reset (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS ENTRY AND START SYSTEM].)(See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM].)

7.  Install in the reverse order of removal.

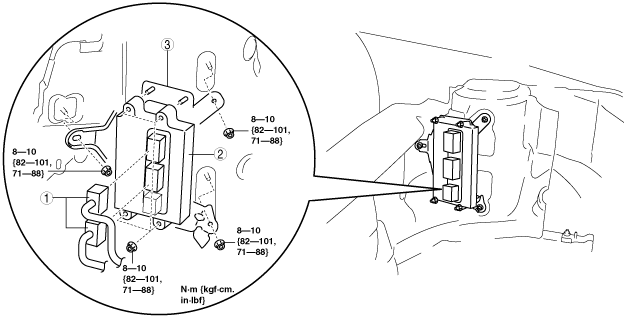

ac9wzw00001260

1
PCM connector
2
PCM
3
PCM bracket


PCM Connector (3 Types)

Note
•  For replace the PCM, setup the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION [MZI-3.7].)

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

2.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

3.  Disconnect the PCM connectors.

4.  Remove the PCM and bracket as assembly.

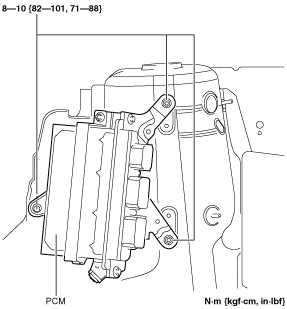

ac9wzw00001733

5.  Remove in the order indicated in the table.

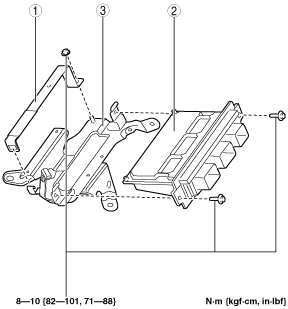

ac9wzw00002363

1
PCM bracket No.1
2
PCM
3
PCM bracket No.2

6.  Install in the reverse order of removal.

7.  When replacing the PCM on the vehicles, perform the following:

•  PCM parameter reset (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS ENTRY AND START SYSTEM].)(See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM].)
