ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZI-3.7]


id0140c3803200


PCM Connector (2 Types)

Note
•  The APP sensor cannot be removed as a single unit. When replacing the APP sensor, replace it together with the accelerator pedal as a single unit.

Voltage Inspection

1.  Turn the ignition switch to the ON position (Engine OFF).

2.  Verify that the PCM terminal 1AC, 1AG and 1AK change smoothly while throttle valve is gradually opened.

•  If as verified, go to the next step.
•  If not as verified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Verify that the PCM terminal 1AC, 1AG and 1AK voltages are as shown in the following table.

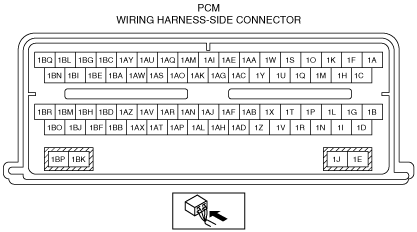

ac9wzw00001737

•  If voltage is not as following table, replace the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.7].)

APP sensor output voltage

Condition

PCM terminal 1AK (APP sensor No.1)

PCM terminal 1AG (APP sensor No.2)

PCM terminal 1AC (APP sensor No.3)

Accelerator pedal released
Approx. 4.0 V
Approx. 1.5 V
Approx. 0.9 V
Accelerator pedal depressed
Approx. 1.1 V
Approx. 3.8 V
Approx. 3.2V


PCM Connector (3 Types)

Note
•  The APP sensor cannot be removed as a single unit. When replacing the APP sensor, replace it together with the accelerator pedal as a single unit.

Voltage Inspection

1.  Turn the ignition switch to the ON position (Engine OFF).

2.  Verify that the PCM terminal 1Y and 1U change smoothly while throttle valve is gradually opened.

•  If as verified, go to the next step.
•  If not as verified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Verify that the PCM terminal 1Y and 1U voltages are as shown in the following table.

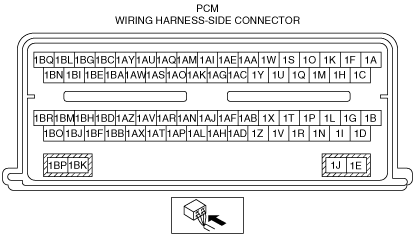

ac9wzw00002372

•  If voltage is not as following table, replace the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.7].)

APP sensor output voltage

Condition

PCM terminal 1Y (APP sensor No.1

PCM terminal 1U (APP sensor No.2)

Accelerator pedal released
Approx. 4.0 V
Approx. 1.5 V
Accelerator pedal depressed
Approx. 1.1 V
Approx. 3.8 V
