REAR HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZI-3.7 (PCM CONNECTOR (2 TYPES))]

id0140c3804919

Rear HO2S Inspection

1.  Connect the M-MDS to the DLC-2.

ac9wzw00002359

2.  Warm up the engine to normal operating temperature.

3.  Access and monitor the following PIDs using the M-MDS: (See ON-BOARD DIAGNOSTIC TEST [MZI-3.7 (PCM CONNECTOR (2 TYPES))].)

―  VSS (Vehicle speed)

―  RPM (Engine speed)

―  O2S12, O2S22 (Rear HO2S output voltage)

4.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

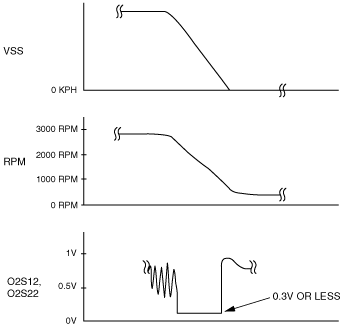

5.  Verify that the rear HO2S outputs a voltage of 0.6 V or more, one time or more, then verify that the rear HO2S output voltage (PID: O2S12, O2S22) is 0.3 V is or less while decelerating as shown in the figure.

ac9wzw00001748

•  If not within the specification, replace the rear HO2S. (See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7 (PCM CONNECTOR (2 TYPES))].)

Rear HO2S Heater Inspection

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

2.  Disconnect the rear HO2S connector.

3.  Measure the resistance between rear HO2S terminals C and A.

ac9wzw00001749

•  If it is not within the specification, replace the rear HO2S. (See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7 (PCM CONNECTOR (2 TYPES))].)
