TRANSVERSE MEMBER REMOVAL/INSTALLATION


id021300801100

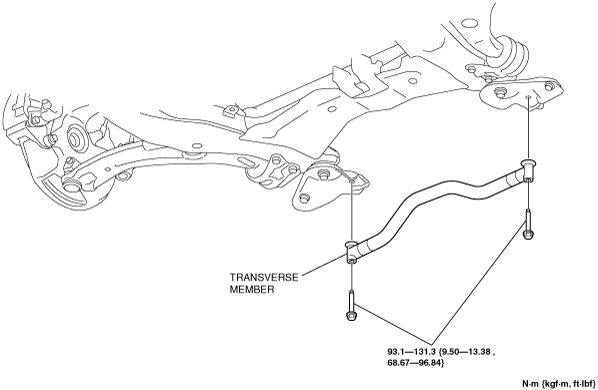

1.  Remove the transverse member.

ac9uuw00000922

2.  Install the transverse member with the identification mark facing the rear right of the vehicle.

ac9uuw00000776
