REAR STABILIZER REMOVAL/INSTALLATION [2WD]

id0214008005a1

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

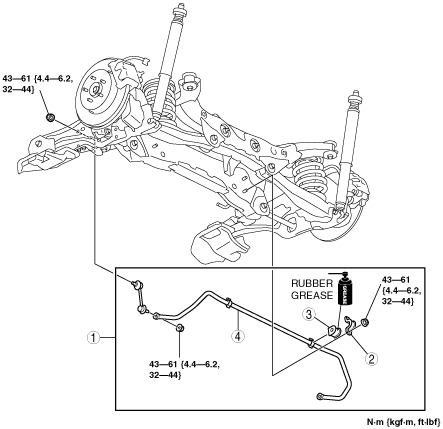

ac9uuw00000994

1	Rear stabilizer component
2	Stabilizer bracket
3	Bushing
4	Rear stabilizer (See Rear Stabilizer Installation Note.)

Rear Stabilizer Installation Note

1.  Install the rear stabilizer so that the identification mark faces the right side of the vehicle.

am8rrw00001449
