FRONT DRIVE SHAFT STRUCTURE


id031300101000

•  A bell joint has been adopted for the wheel-side constant velocity joint, reducing vibration and noise.

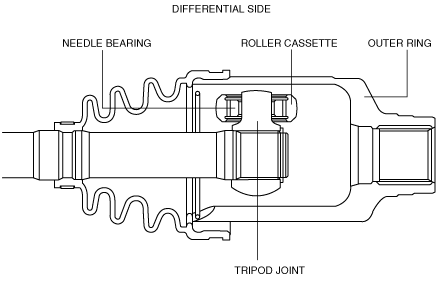

•  A tripod joint have been adopted for the differential side constant velocity joint to reduce booming noise during high-speed driving and vibration when idling.
ac9wzn00000365
