JOINT SHAFT DISASSEMBLY [4WD]

id031300801042

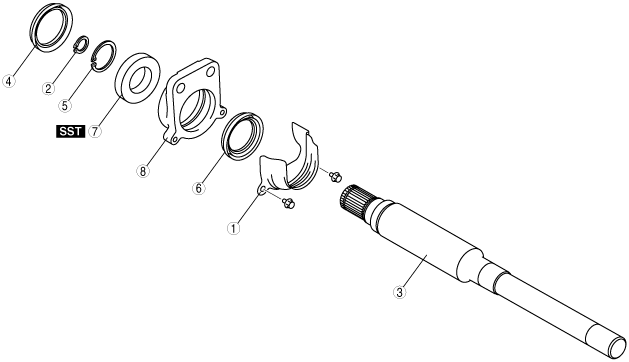

1.  Disassemble in the order indicated in the table.

ac9uuw00001349

1	Cover
2	Snap ring
3	Joint shaft (See Joint Shaft Disassembly Note.)
4	Dust seal (axle side) (See Dust Seal (Axle Side) Disassembly Note.)
5	Snap ring
6	Dust seal (differential side) (See Dust Seal (Differential Side) Disassembly Note.)
7	Bearing (See Bearing Disassembly Note.)
8	Bearing housing

Joint Shaft Disassembly Note

1.  Remove the joint shaft using a press.

ac9uuw00001342

Dust Seal (Axle Side) Disassembly Note

1.  Remove the dust seal using a flathead screwdriver.

Dust Seal (Differential Side) Disassembly Note

1.  Remove the dust seal using a flathead screwdriver.

Bearing Disassembly Note

1.  Remove the bearing using a press and the SSTs.
