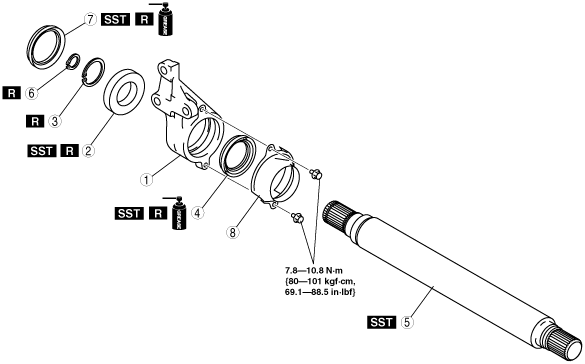

JOINT SHAFT ASSEMBLY [2WD]
id0313008011a3
1. Assemble in the order indicated in the table.
ac9wzw00001447
|
|
1
|
Bearing housing
|
|
2
|
Bearing
(See Bearing Assembly Note.)
|
|
3
|
Snap ring
|
|
4
|
Dust seal (differential side)
|
|
5
|
Joint shaft
(See Joint Shaft Assembly Note.)
|
|
6
|
Snap ring
|
|
7
|
Dust seal (axle side)
|
|
8
|
Cover
|
Bearing Assembly Note
1. Install the new bearing using a press and the SST.
ac9uuw00001409
|
Dust Seal (Differential Side) Assembly Note
1. Apply grease to the new dust seal lip.
2. Install the dust seal (differential side) using a press and the SSTs.
ac9uuw00001410
|
Joint Shaft Assembly Note
1. Install the joint shaft using a press and the SST.
ac9uuw00001411
|
Dust Seal (Axle Side) Assembly Note
1. Apply grease to the new dust seal lip.
2. Install the dust seal (axle side) using a press and the SST.
ac9uuw00001412
|
