FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041800816700

1.  When removing the right front ABS wheel-speed sensor, perform the following procedure.

(1)  Remove the coolant reserve tank installation bolts and move the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZI-3.7].)

(2)  Remove the power steering reserve tank installation bolt and nut, and move the power steering reserve tank. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [L.H.D.].) (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [R.H.D.].)

2.  When removing the left front ABS wheel-speed sensor, perform the following procedure:

(1)  Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Remove in the order indicated in the table.

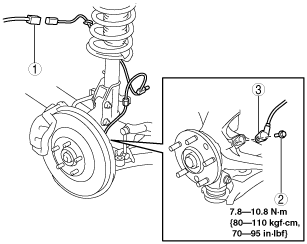

ac9wzw00000145

1	Front ABS wheel-speed sensor connector
2	Bolt
3	Front ABS wheel-speed sensor

4.  Install in the reverse order of removal.
