DSC/RSC HU/CM INSPECTION

id041800818600

1. Disconnect the DSC/RSC HU/CM connector. (See DSC/RSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC/RSC HU/CM REMOVAL/INSTALLATION [R.H.D.].)

2. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

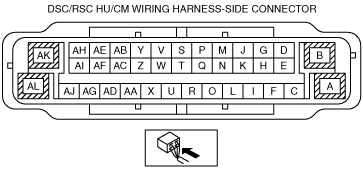

3. Attach the tester lead to the DSC/RSC HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

Standard (Reference Value)

ac9wzw00000844

Terminal

Signal name

Connected to

Measured item

Measured terminal (measured condition)

Standard

Inspection item(s)

A

Ground

(DSC/RSC system)

Ground point

Continuity

A—ground point

Continuity detected

•  Wiring harness (A—ground point)

B

Ground

(ABS motor)

Ground point

Continuity

B—ground point

Continuity detected

•  Wiring harness (B—ground point)

C

—

—

—

—

—

—

D

—

—

—

—

—

—

E

—

—

—

—

—

—

F

LR wheel-speed sensor (power supply)

LR ABS wheel-speed sensor

Continuity

F—LR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (F—LR ABS wheel-speed sensor connector terminal B)

G

RR wheel-speed sensor (power supply)

RR ABS wheel-speed sensor

Continuity

G—RR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (G—RR ABS wheel-speed sensor connector terminal B)

H

—

—

—

—

—

—

I

LR wheel-speed sensor (signal)

LR ABS wheel-speed sensor

Continuity

I—LR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (I—LR ABS wheel-speed sensor connector terminal A)

J

RR wheel-speed sensor (signal)

RR ABS wheel-speed sensor

Continuity

J—RR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (J—RR ABS wheel-speed sensor connector terminal A)

K

—

—

—

—

—

—

L

—

—

—

—

—

—

M

CAN2_L

SAS control module

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

N

—

—

—

—

—

—

O

—

—

—

—

—

—

P

CAN2_H

SAS control module

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

Q

—

—

—

—

—

—

R

—

—

—

—

—

—

S

—

—

—

—

—

—

T

—

—

—

—

—

—

U

TCS OFF switch

TCS OFF switch

Continuity

U—TCS OFF switch connector terminal A

Continuity detected

•  Wiring harness (U—TCS OFF switch connector terminal A)

V

HS_CAN_L

DLC-2 (HS_CAN_L)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

W

—

—

—

—

—

—

X

Power supply

(system)

Ignition switch

Voltage

Ignition switch at ON

B+

•  Wiring harness (X—ignition switch)

Ignition switch is off.

1 V or less

—

Y

HS_CAN_H

DLC-2 (HS_CAN_H)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

Z

—

—

—

—

—

—

AA

—

—

—

—

—

—

AB

RF wheel-speed sensor (signal)

RF ABS wheel-speed sensor

Continuity

AB—RF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (AB—RF ABS wheel-speed sensor connector terminal B)

AC

—

—

—

—

—

—

AD

LF wheel-speed sensor (signal)

LF ABS wheel-speed sensor

Continuity

AD—LF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (AD—LF ABS wheel-speed sensor connector terminal B)

AE

RF wheel-speed sensor (power supply)

RF ABS wheel-speed sensor

Continuity

AE—RF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (AE—RF ABS wheel-speed sensor connector terminal A)

AF

—

—

—

—

—

—

AG

LF wheel-speed sensor (power supply)

LF ABS wheel-speed sensor

Continuity

AG—LF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (AG—LF ABS wheel-speed sensor connector terminal A)

AH

—

—

—

—

—

—

AI

—

—

—

—

—

—

AJ

—

—

—

—

—

—

AK

Power supply

(ABS motor operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (AK—battery)

AL

Power supply

(solenoid operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (AL—battery)

Terminal	Signal name	Connected to	Measured item	Measured terminal (measured condition)	Standard	Inspection item(s)
A	Ground (DSC/RSC system)	Ground point	Continuity	A—ground point	Continuity detected	• Wiring harness (A—ground point)
B	Ground (ABS motor)	Ground point	Continuity	B—ground point	Continuity detected	• Wiring harness (B—ground point)
C	—	—	—	—	—	—
D	—	—	—	—	—	—
E	—	—	—	—	—	—
F	LR wheel-speed sensor (power supply)	LR ABS wheel-speed sensor	Continuity	F—LR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (F—LR ABS wheel-speed sensor connector terminal B)
G	RR wheel-speed sensor (power supply)	RR ABS wheel-speed sensor	Continuity	G—RR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (G—RR ABS wheel-speed sensor connector terminal B)
H	—	—	—	—	—	—
I	LR wheel-speed sensor (signal)	LR ABS wheel-speed sensor	Continuity	I—LR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (I—LR ABS wheel-speed sensor connector terminal A)
J	RR wheel-speed sensor (signal)	RR ABS wheel-speed sensor	Continuity	J—RR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (J—RR ABS wheel-speed sensor connector terminal A)
K	—	—	—	—	—	—
L	—	—	—	—	—	—
M	CAN2_L	SAS control module	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
N	—	—	—	—	—	—
O	—	—	—	—	—	—
P	CAN2_H	SAS control module	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
Q	—	—	—	—	—	—
R	—	—	—	—	—	—
S	—	—	—	—	—	—
T	—	—	—	—	—	—
U	TCS OFF switch	TCS OFF switch	Continuity	U—TCS OFF switch connector terminal A	Continuity detected	• Wiring harness (U—TCS OFF switch connector terminal A)
V	HS_CAN_L	DLC-2 (HS_CAN_L)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
W	—	—	—	—	—	—
X	Power supply (system)	Ignition switch	Voltage	Ignition switch at ON	B+	• Wiring harness (X—ignition switch)
X	Power supply (system)	Ignition switch	Voltage	Ignition switch is off.	1 V or less	—
Y	HS_CAN_H	DLC-2 (HS_CAN_H)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
Z	—	—	—	—	—	—
AA	—	—	—	—	—	—
AB	RF wheel-speed sensor (signal)	RF ABS wheel-speed sensor	Continuity	AB—RF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (AB—RF ABS wheel-speed sensor connector terminal B)
AC	—	—	—	—	—	—
AD	LF wheel-speed sensor (signal)	LF ABS wheel-speed sensor	Continuity	AD—LF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (AD—LF ABS wheel-speed sensor connector terminal B)
AE	RF wheel-speed sensor (power supply)	RF ABS wheel-speed sensor	Continuity	AE—RF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (AE—RF ABS wheel-speed sensor connector terminal A)
AF	—	—	—	—	—	—
AG	LF wheel-speed sensor (power supply)	LF ABS wheel-speed sensor	Continuity	AG—LF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (AG—LF ABS wheel-speed sensor connector terminal A)
AH	—	—	—	—	—	—
AI	—	—	—	—	—	—
AJ	—	—	—	—	—	—
AK	Power supply (ABS motor operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AK—battery)
AL	Power supply (solenoid operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AL—battery)
